Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons

August 23, 2018 by Veerendra

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons (Using ruler and compass only)

ICSE SolutionsSelina ICSE Solutions

APlusTopper.com provides step by step solutions for Selina Concise Mathematics Class 9 ICSE Solutions Chapter 15 Construction of Polygons (Using ruler and compass only). You can download the Selina Concise Mathematics ICSE Solutions for Class 9 with Free PDF download option. Selina Publishers Concise Mathematics for Class 9 ICSE Solutions all questions are solved and explained by expert mathematic teachers as per ICSE board guidelines.

Download Formulae Handbook For ICSE Class 9 and 10

Selina ICSE Solutions for Class 9 Maths Chapter 15 Construction of Polygons (Using ruler and compass only)

Solution 1:

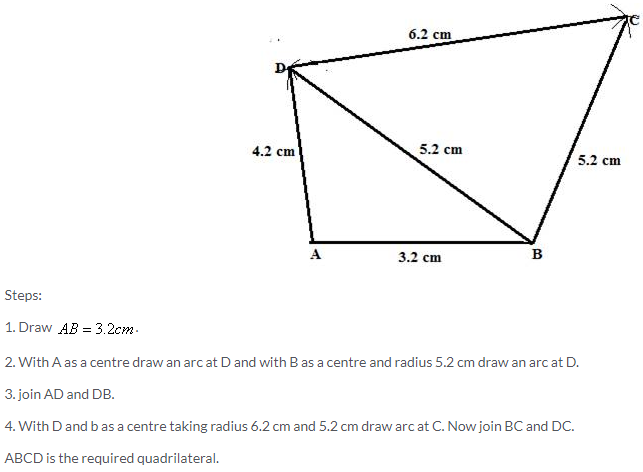

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 1

Solution 2:

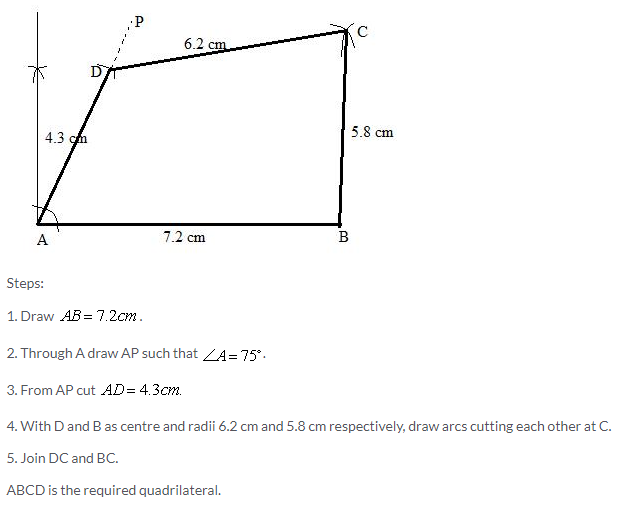

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 2

Solution 3:

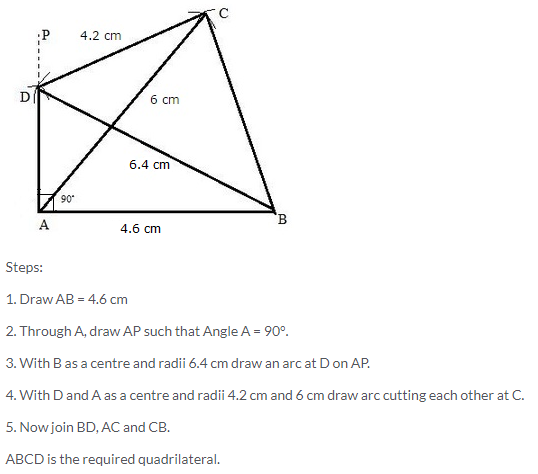

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 3

Solution 4:

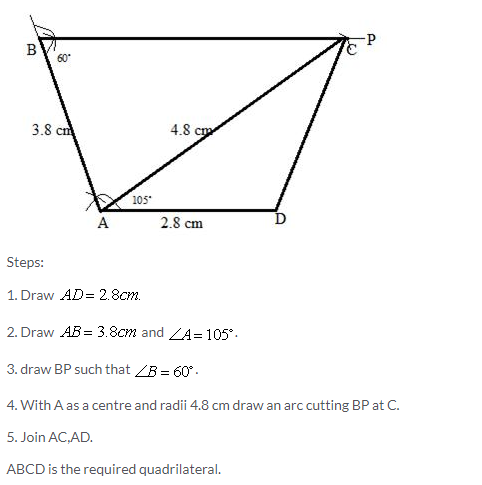

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 4

Solution 5:

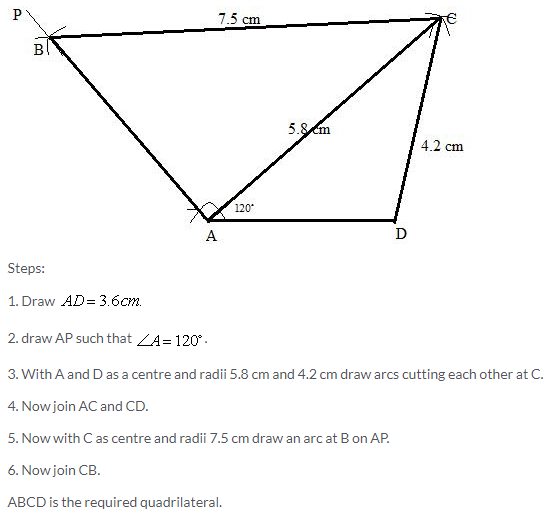

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 5

Solution 6:

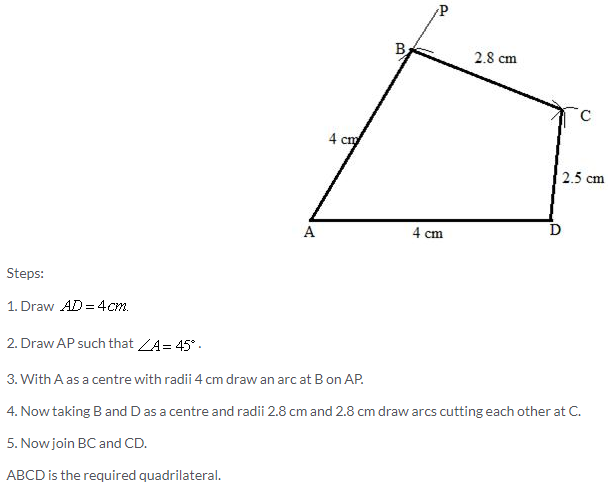

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 6

Solution 7:

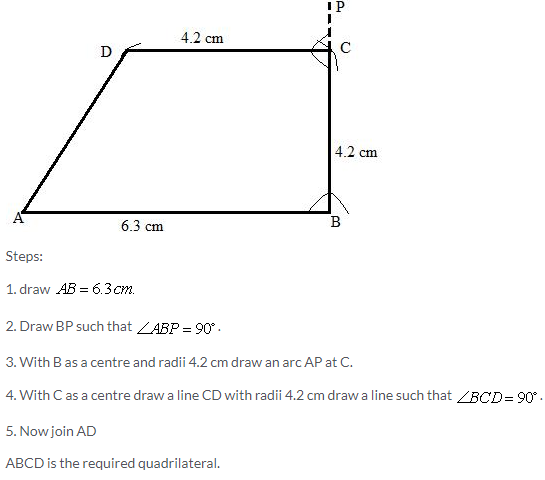

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 7

Solution 8:

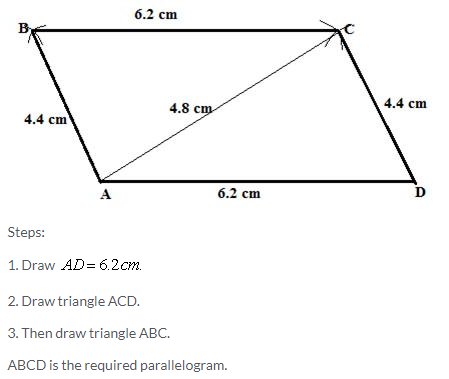

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 8

Solution 9:

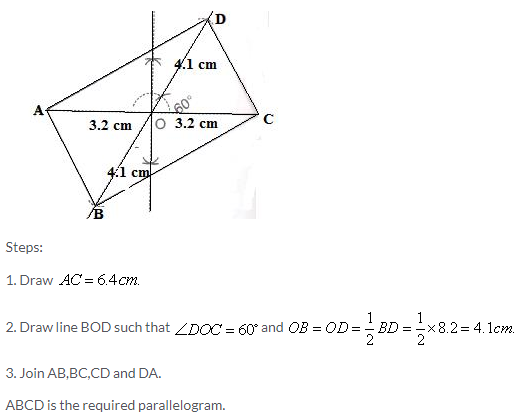

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 9

Solution 10:

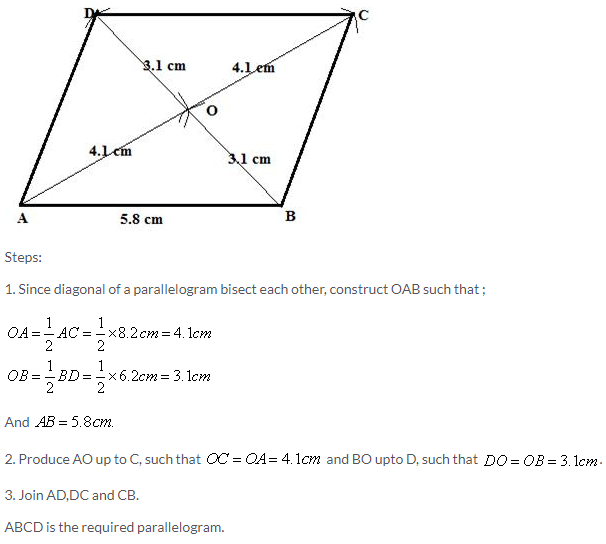

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 10

Solution 11:

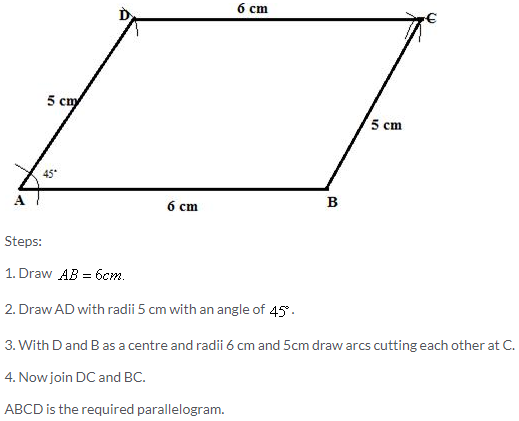

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 11

Solution 12:

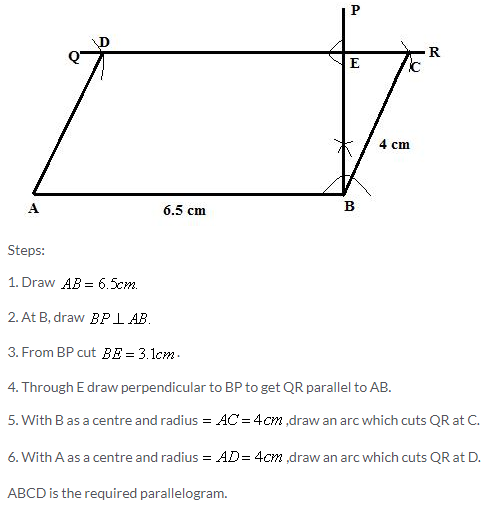

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 12

Solution 13:

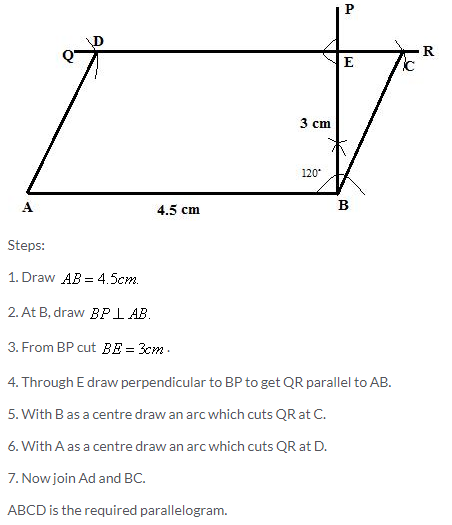

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 13

Solution 14:

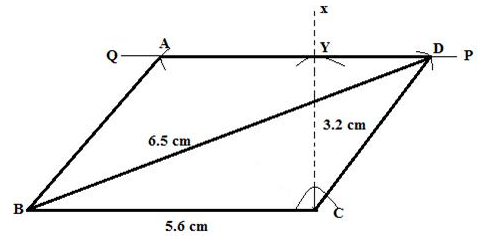

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 14

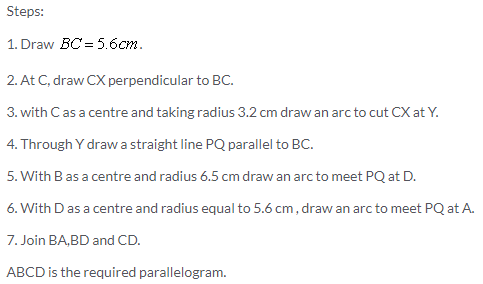

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 14

Solution 15:

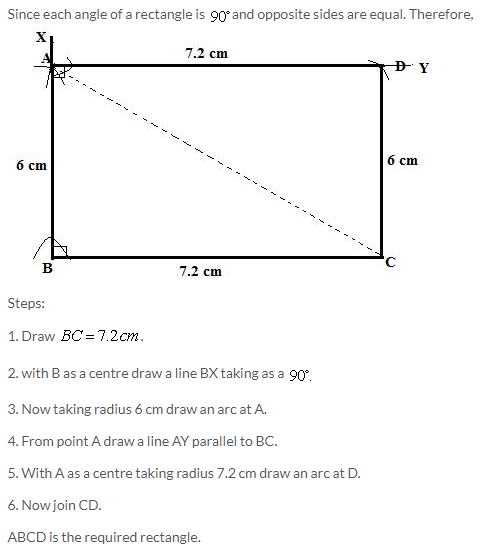

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 16

Solution 16:

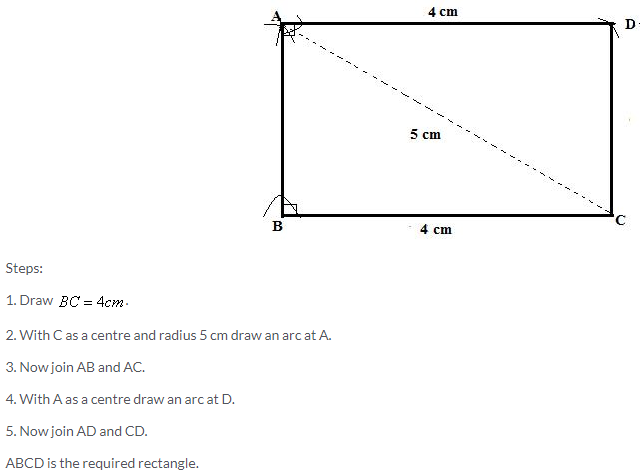

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 17

Solution 17:

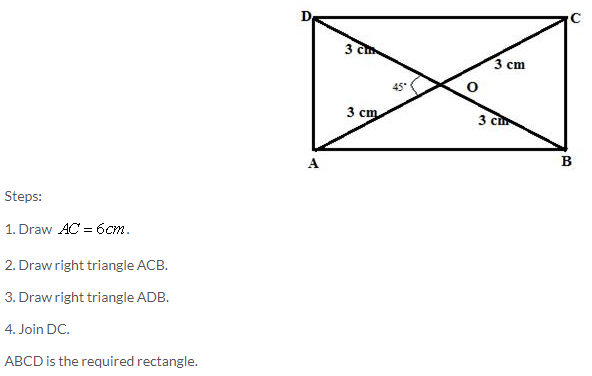

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 18

Solution 18:

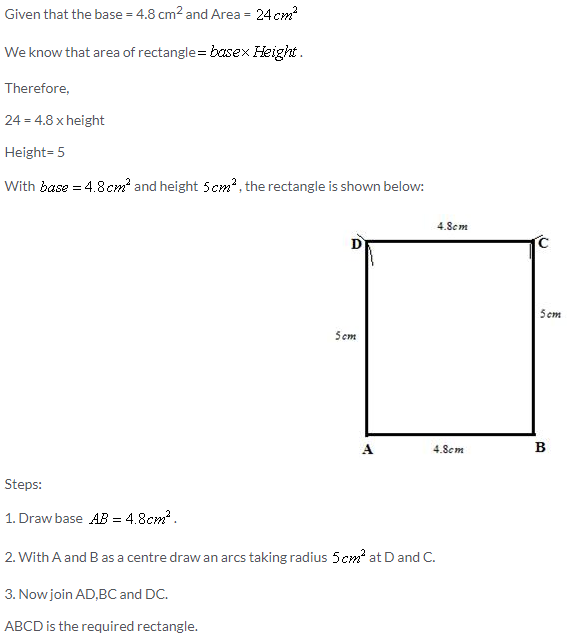

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 19

Solution 19:

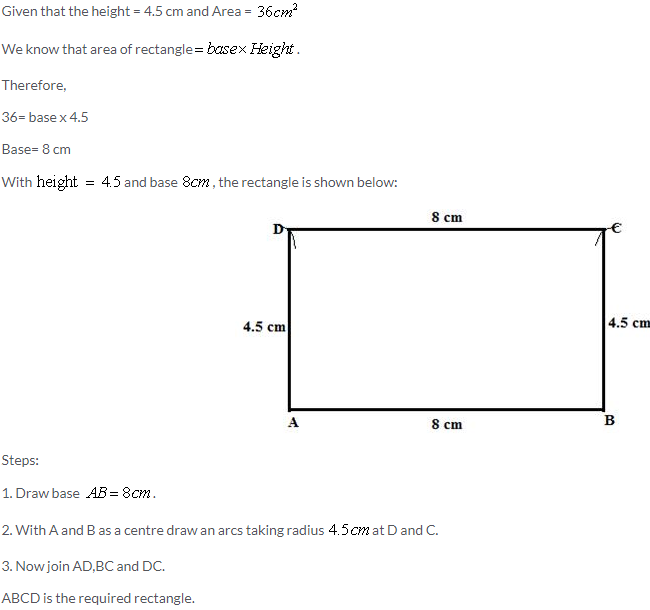

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 20

Solution 20:

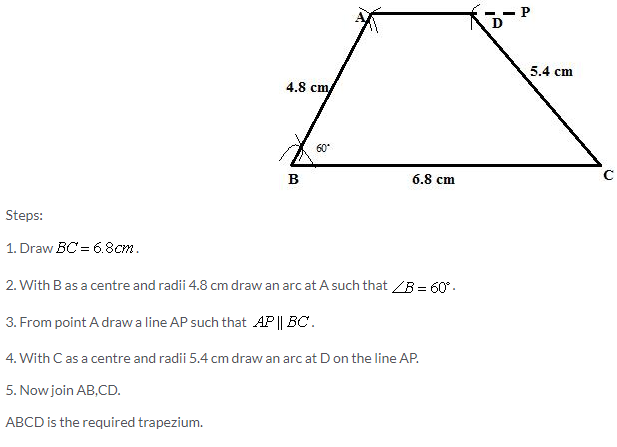

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 21

Solution 21:

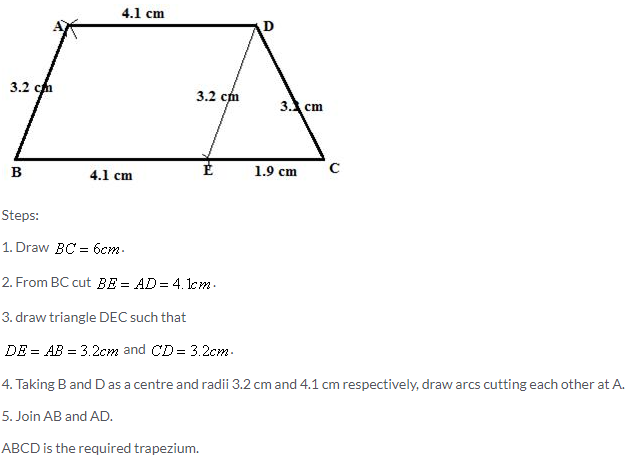

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 22

Solution 22:

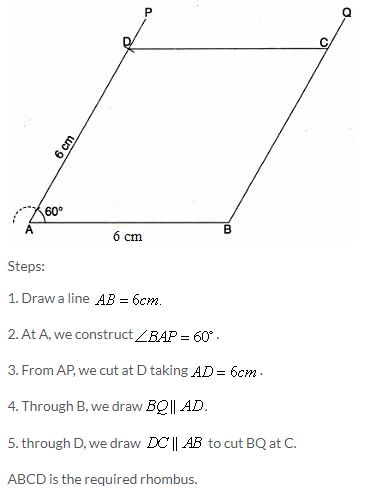

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 23

Solution 23:

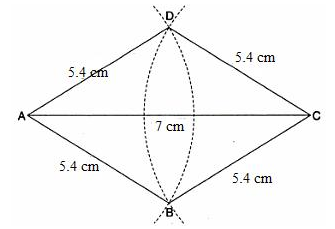

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 24
Steps:

  1. We construct the segment AC = 7cm.
  2. With A as a centre and radius 5.4 cm , we draw an arc extending on both sides of AC.
  3. With C as centre and same radius as in step 2, we draw an arc extending on both sides of AC to cut the first arc at B and D.
  4. Join AB,BC,CD and DA.

ABCD is the required rhombus.

Solution 24:

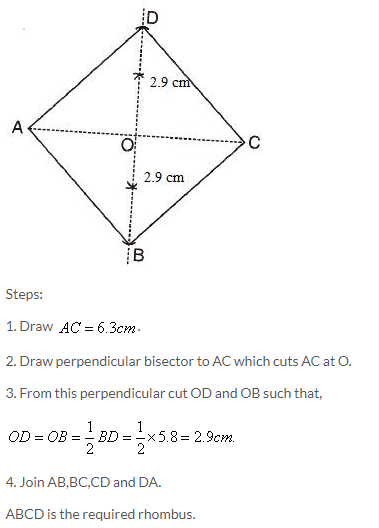

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 25

Solution 25:

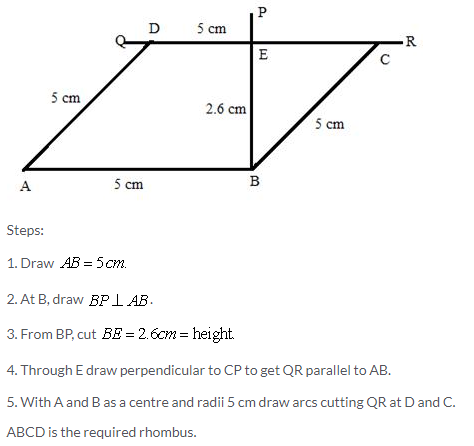

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 26

Solution 26:
Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 27

Solution 27:

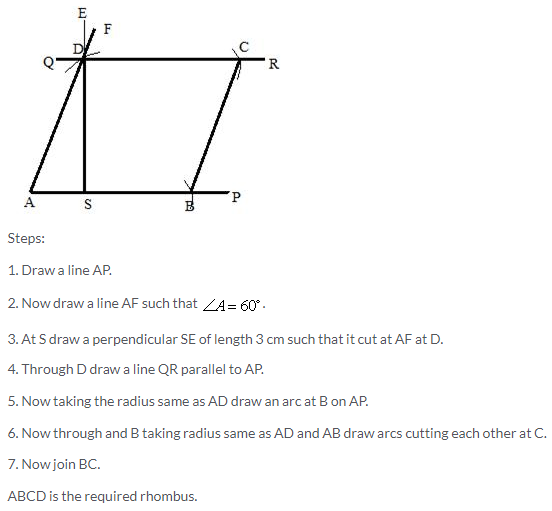

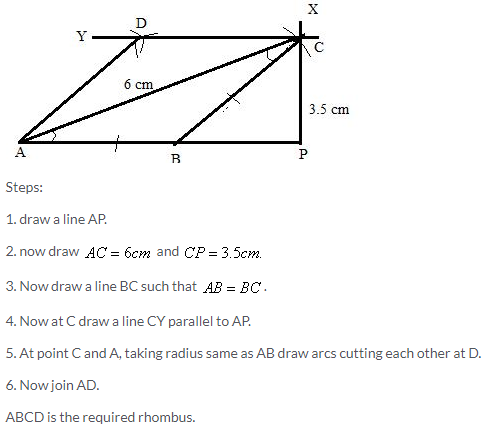

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 28

Solution 28:

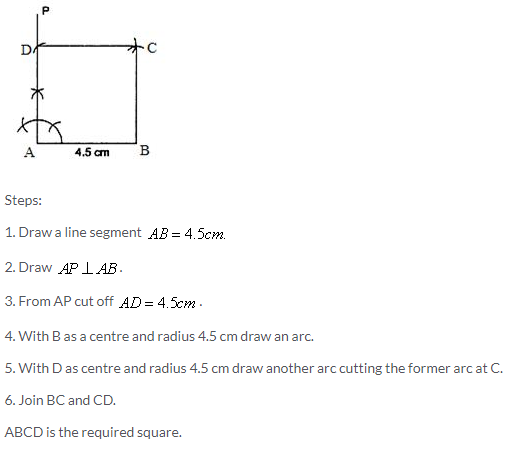

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 29

Solution 29:

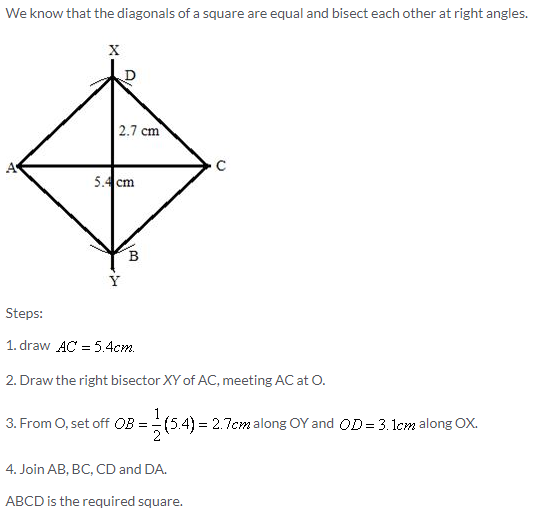

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 30

Solution 30:

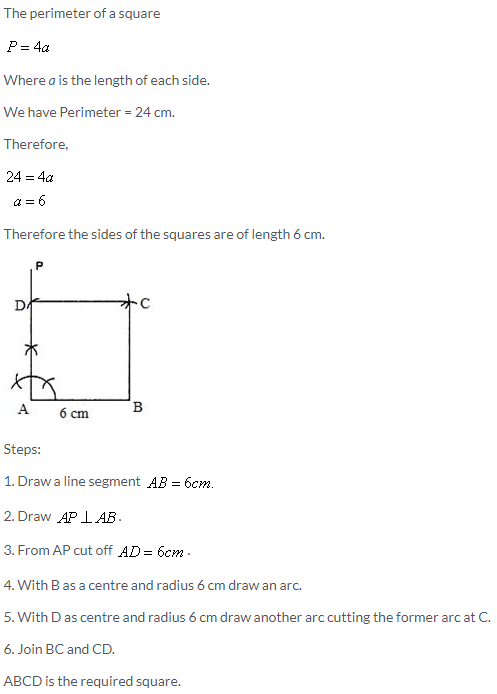

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 31

Solution 31:

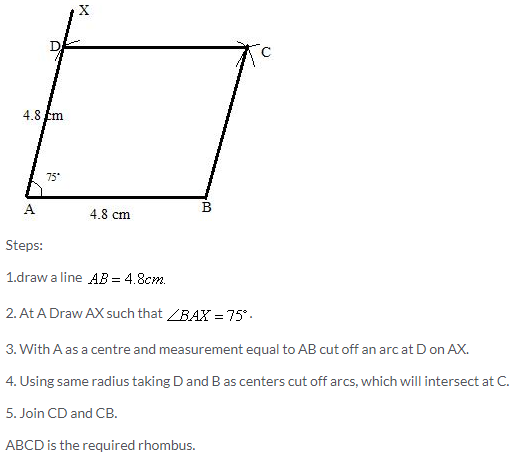

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 32

Solution 32:

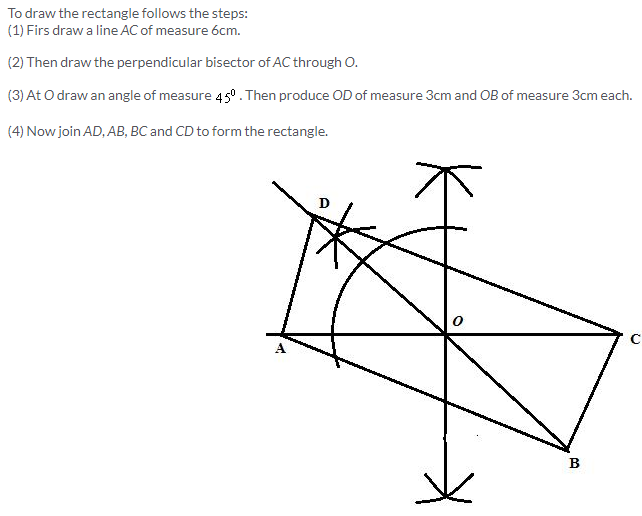

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 33

Solution 33:

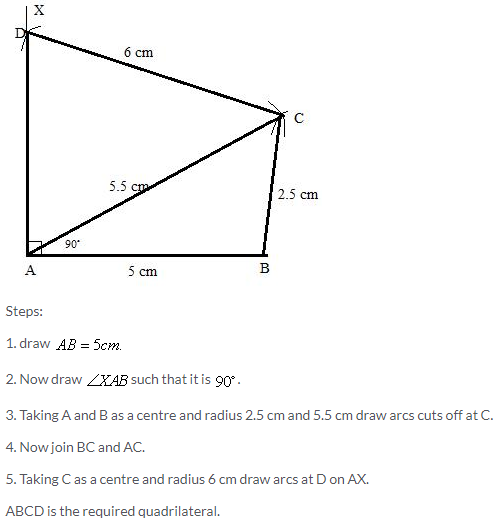

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 34

Solution 34:

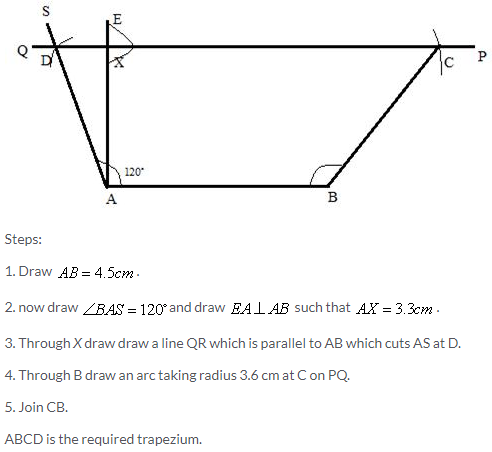

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 35

Solution 35:

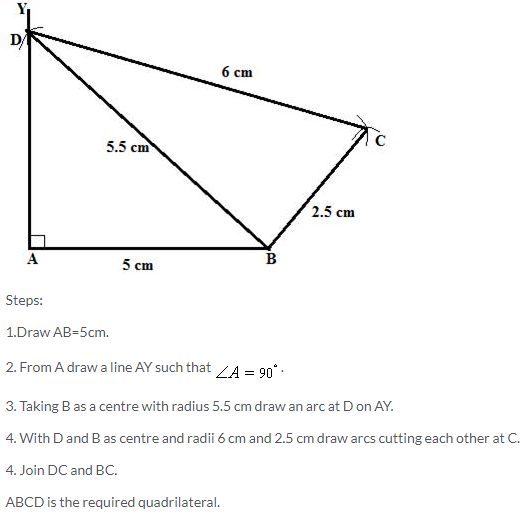

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 36

Solution 36:

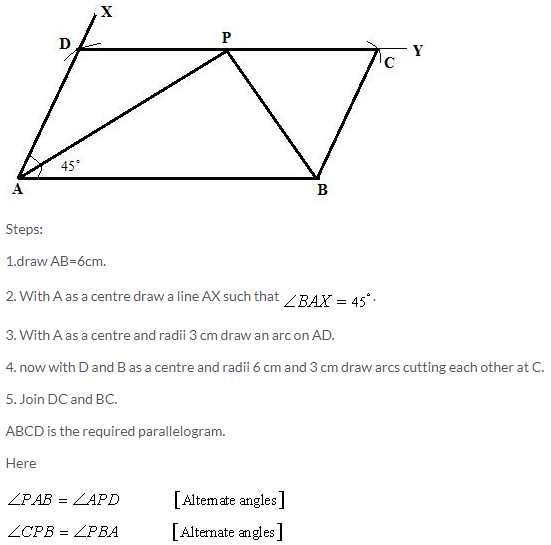

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 37

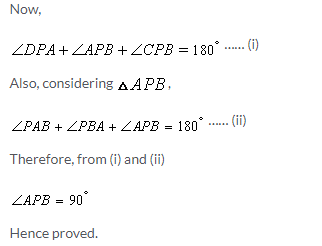

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 38

Solution 37:

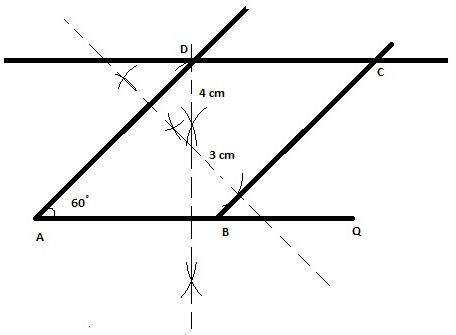

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 39

Steps:

  1. Draw a base line AQ.
  2. From A take some random distance in compass and draw one are below and above the line. Now without changing the distance in compass draw one are below and above the line. These arcs intersect each other above and below the line.
  3. Draw the line passing through these intersecting points, you will get a perpendicular to the line AQ.
  4. Take distance of 4 cm in compass and mark an arc on the perpendicular above the line. Draw a line parallel to line AQ passing through through this arc.
  5. From point A measure an angle of 60 degree and draw the line which intersect above drawn line at some point label it as D.
  6. Using the procedure given in step 2 again draw a perpendicular to line AD.
  7. Take distance of 3 cm in compass and mark an arc on the perpendicular above the line. Draw a line parallel to line AD passing through through this arc which intersect the line AQ at some point label it as B and to other line at point C.

ABCD is the required parallelogram.

Solution 38:
To draw the parallelogram follows the steps:

  1. First draw a line AB of measure 6cm. Then draw an angle of measure 450 at point A such that ∠DAB = 450 and AD = 5cm.
  2. Now draw a line CD parallel to the line AB of measure 6cm. Then join BC to construct the parallelogram as shown below:

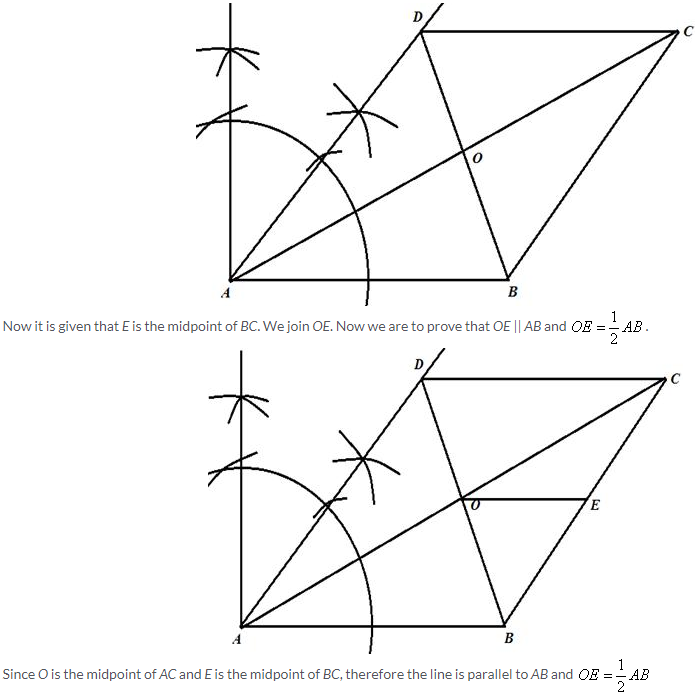

Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 40

Solution 39:
Selina Concise Mathematics Class 9 ICSE Solutions Construction of Polygons image - 41
