ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test

October 8, 2018 by Nirmala

ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test

These Solutions are part of ML Aggarwal Class 10 Solutions for ICSE Maths. Here we have given ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test.

ML Aggarwal SolutionsICSE SolutionsSelina ICSE Solutions

Question 1.
(a) In the figure (i) given below, triangle ABC is equilateral. Find ∠BDC and ∠BEC.

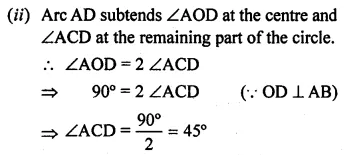

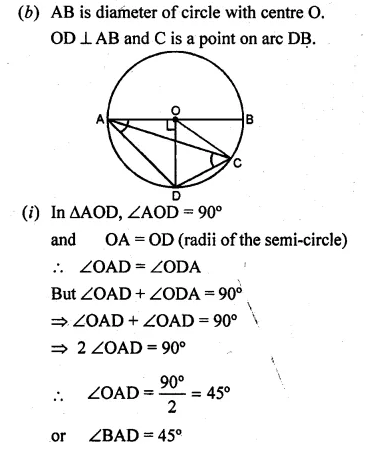

(b) In the figure (ii) given below, AB is a diameter of a circle with centre O. OD is perpendicular to AB and C is a point on the arc DB. Find ∠BAD and ∠ACD
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q1.1

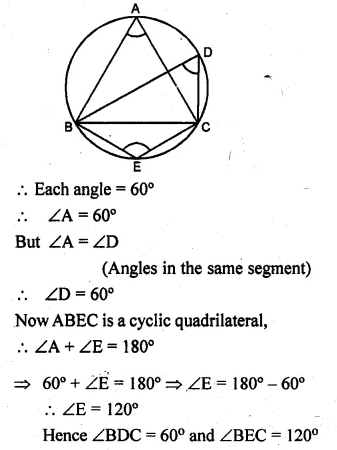

Solution:
(a) ∆ABC is an equilateral triangle.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q1.2
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q1.3
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q1.4

Question 2.

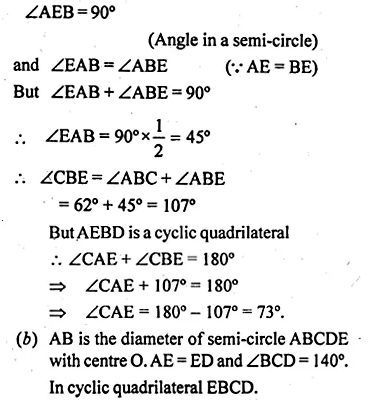

(a) In the figure given below, AB is a diameter of the circle. If AE = BE and ∠ADC = 118°, find
(i) ∠BDC (ii) ∠CAE.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q2.1

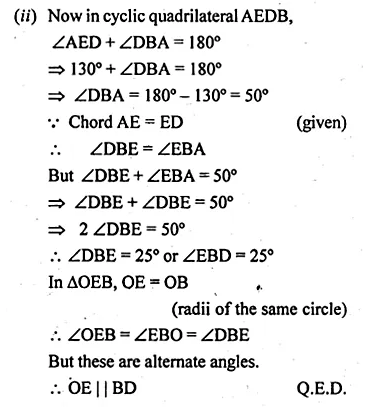

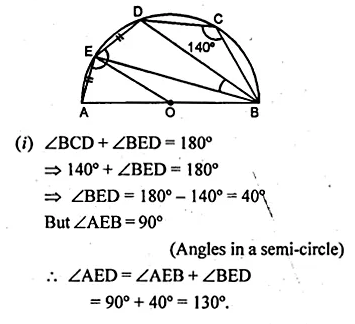

(b) In the figure given below, AB is the diameter of the semi-circle ABCDE with centre O. If AE = ED and ∠BCD = 140°, find ∠AED and ∠EBD. Also Prove that OE is parallel to BD.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q2.2
Solution:

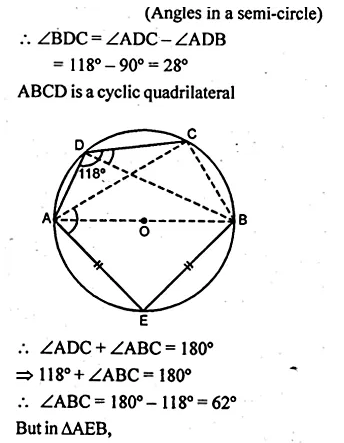

(a) Join DB, CA and CB.
∠ADC = 118° (given)
and ∠ADB = 90°
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q2.3
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q2.4
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q2.5
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q2.6

Question 3.

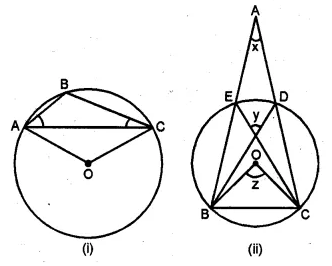

(a) In the figure (i) given below, O is the centre of the circle. Prove that ∠AOC = 2 (∠ACB + ∠BAC).

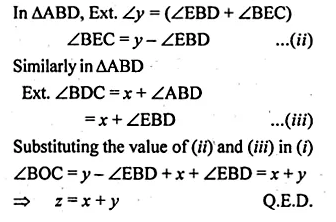

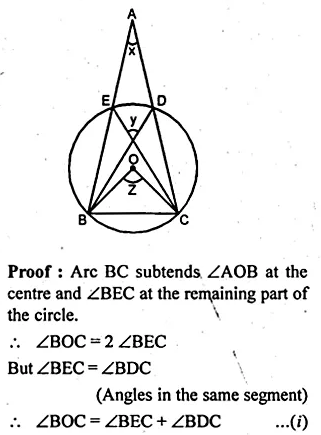

(b) In the figure (ii) given below, O is the centre of the circle. Prove that x + y = z.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q3.1
Solution:

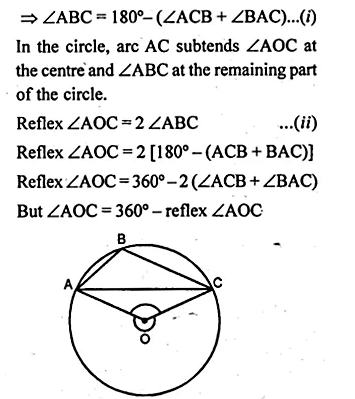

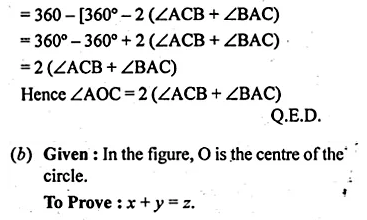

(a) Given : O is the centre of the circle.
To Prove : ∠AOC = 2 (∠ACB + ∠BAC).
Proof: In ∆ABC,
∠ACB + ∠BAC + ∠ABC = 180°
(Angles of a triangle)
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q3.2
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q3.3
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q3.4
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q3.5

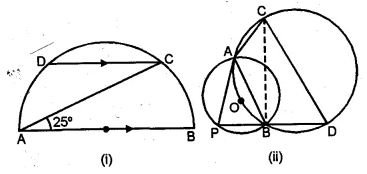

Question 4.
(a) In the figure (i) given below, AB is diameter of a circle. If DC is parallel to AB and ∠CAB = 25°, find :
(i)∠ADC (ii) ∠DAC.

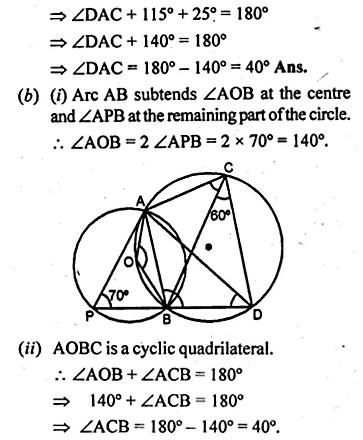

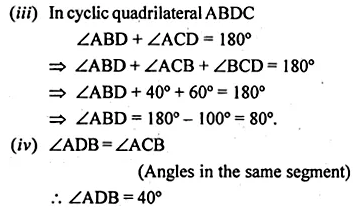

(b) In the figure (ii) given below, the centre O of the smaller circle lies on the circumference of the bigger circle. If ∠APB = 70° and ∠BCD = 60°, find :
(i) ∠AOB (ii) ∠ACB
(iii) ∠ABD (iv) ∠ADB.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q4.1

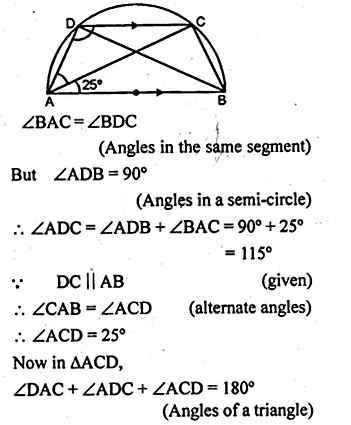

Solution:
(a) AB is diameter and DC || AB,
∠CAB = 25°, join AD,BD
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q4.2
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q4.3
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q4.4

Question 5.

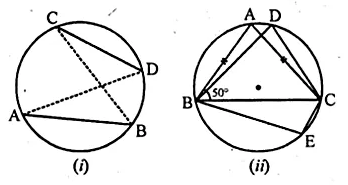

(a) In the figure (i) given below, ABCD is a cyclic quadrilateral. If AB = CD, Prove that AD = BC.

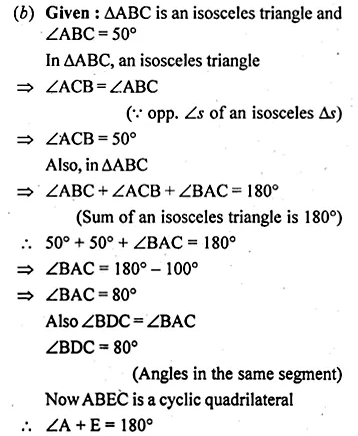

(b) In the figure (ii) given below, ABC is an isosceles triangle with AB = AC. If ∠ABC = 50°, find ∠BDC and ∠BEC.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q5.1
Solution:

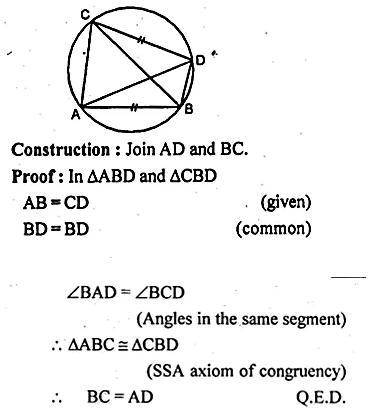

(a) Given : ABDC is a cyclic quadrilateral AB = CD.
To Prove: AD = BC.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q5.2
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q5.3
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q5.4

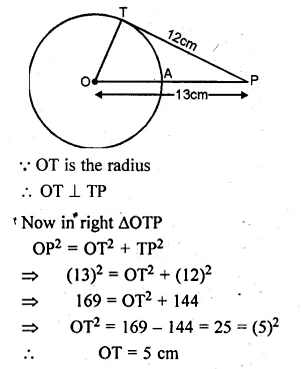

Question 6.
A point P is 13 cm from the centre of a circle. The length of the tangent drawn from P to the circle is 12 cm. Find the distance of P from the nearest point of the circle.
Solution:
Join OT, OP = 13 cm and TP = 12 cm
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q6.1
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q6.2

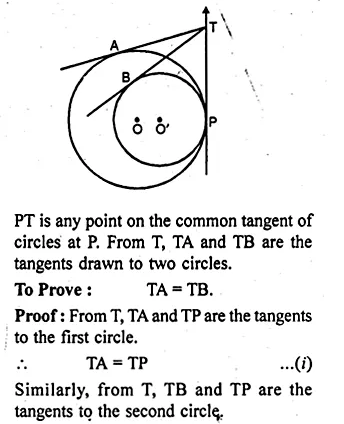

Question 7.
Two circles touch each other internally. Prove that the tangents drawn to the two circles from any point on the common tangent are equal in length.
Solution:
Given : Two circles with centre O and O’ touch each other internally at P.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q7.1
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q7.2

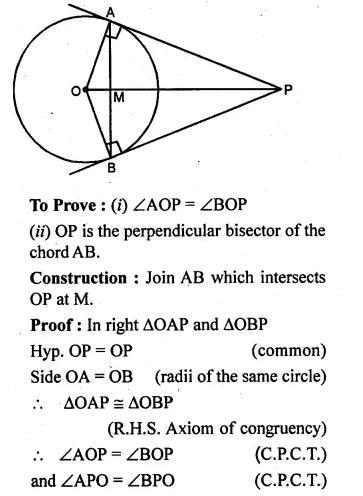

Question 8.

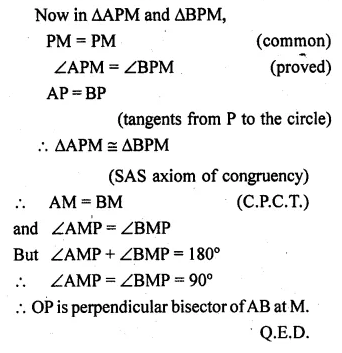

From a point outside a circle, with centre O, tangents PA and PB are drawn. Prove that
(i) ∠AOP = ∠BOP.
(ii) OP is the perpendicular bisector of the chord AB.
Solution:
Given : From a point P, outside the circle with centre O. PA and PB are the tangents to the circle, OA, OB and OP are joined.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q8.1
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q8.2

Question 9.

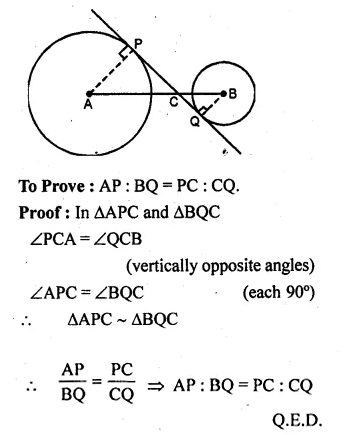

(a) The figure given below shows two circles with centres A, B and a transverse common tangent to these circles meet the straight line AB in C. Prove that:
AP : BQ = PC : CQ.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q9.1

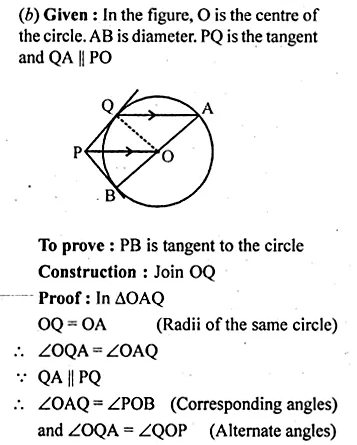

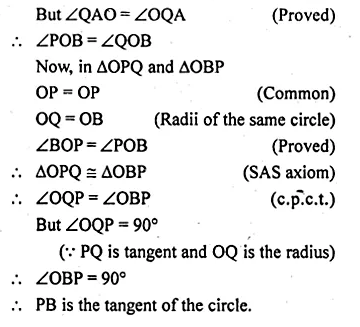

(b) In the figure (ii) given below, PQ is a tangent to the circle with centre O and AB is a diameter of the circle. If QA is parallel to PO, prove that PB is tangent to the circle.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q9.2
Solution:
(a) Given : Two circles with centres A and B and a transverse common tangent to these circles meet AB at C.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q9.3
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q9.4
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q9.5

Question 10.

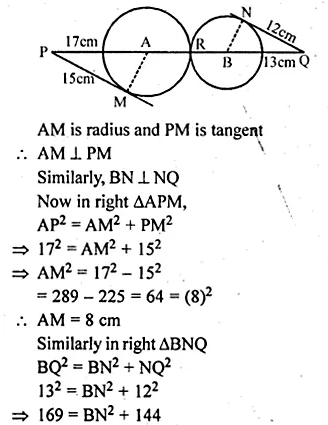

In the figure given below, two circles with centres A and B touch externally. PM is a tangent to the circle with centre A and QN is a tangent to the circle with centre B. If PM = 15 cm, QN = 12 cm, PA = 17 cm and QB = 13 cm, then find the distance between the centres A and B of the circles.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q10.1

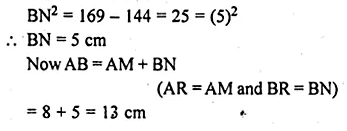

Solution:
In the given figure, two chords with centre A and B touch externally. PM is a tangent to the circle with centre A and QN is tangent to the circle with centre B. PM = 15 cm, QN = 12 cm, PA = 17 cm, QB = 13 cm. We have to find AB.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q10.2
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q10.3

Question 11.
Two chords AB, CD of a circle intersect externally at a point P. If PB = 7 cm, AB = 9 cm and PD = 6 cm, find CD.
Solution:

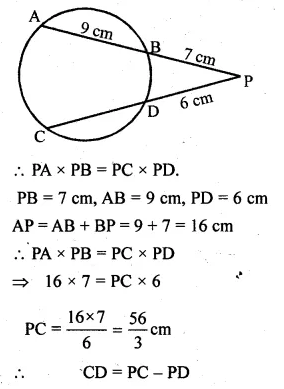

∵ AB and CD are two chords of a circle which intersect each other at P, outside the circle.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q11.1
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q11.2

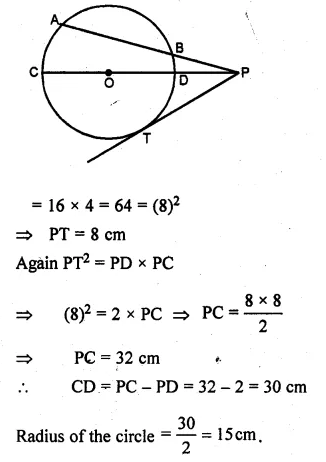

Question 12.

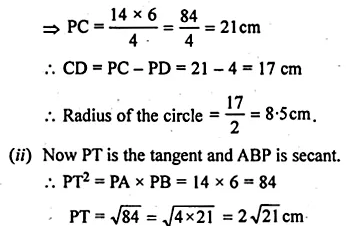

(a) In the figure (i) given below, chord AB and diameter CD of a circle with centre O meet at P. PT is tangent to the circle at T. If AP = 16 cm, AB = 12 cm and DP = 2 cm, find the length of PT and the radius of the circle
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q12.1

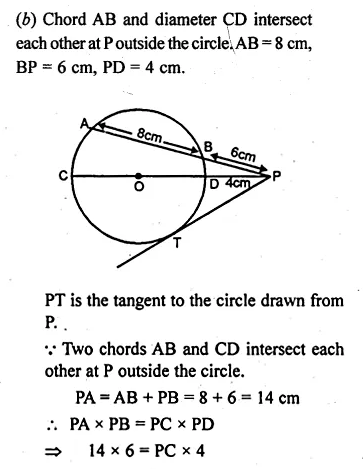

(b) In the figure (ii) given below, chord AB and diameter CD of a circle meet at P. If AB = 8 cm, BP = 6 cm and PD = 4 cm, find the radius of the circle. Also find the length of the tangent drawn from P to the circle. .
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q12.2
Solution:
Given : (a) AB is chord of a circle with centre O and PT is tangent and CD is the diameter of the circle which meet at P.
AP = 16 cm, AB = 12 cm, OP = 2 cm
∴PB = PA – AB = 16 – 12 = 4 cm
∵ABP is a secant and PT is tangent.
∴PT² = PA x PB .
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q12.3
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q12.4
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q12.5

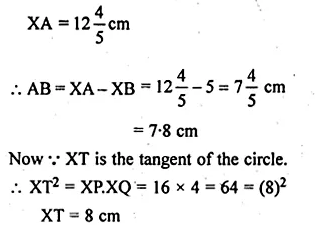

Question 13.
In the figure given below, chord AB and diameter PQ of a circle with centre O meet at X. If BX = 5 cm, OX = 10 cm and.the radius of the circle is 6 cm, compute the length of AB. Also find the length of tangent drawn from X to the circle.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q13.1
Solution:

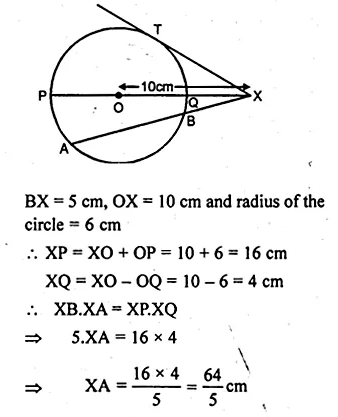

Chord AB and diameter PQ meet at X on producing outside the circle
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q13.2
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q13.3

Question 14.

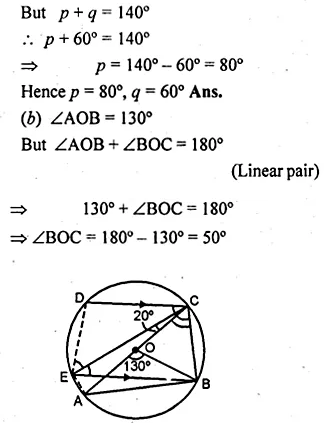

(a) In the figure (i) given below, ∠CBP = 40°, ∠CPB = q° and ∠DAB = p°. Obtain an equation connecting p and q. If AC and BD meet at Q so that ∠AQD = 2 q° and the points C, P, B and Q are concyclic, find the values of p and q.

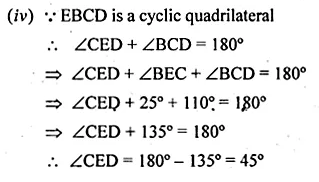

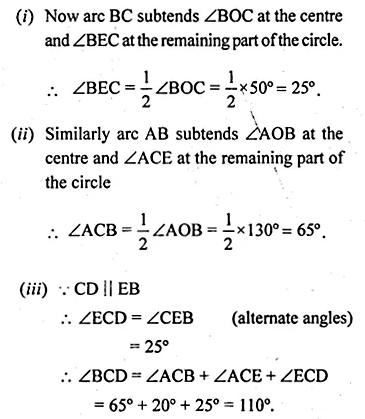

(b) In the figure (ii) given below, AC is a diameter of the circle with centre O. If CD || BE, ∠AOB = 130° and ∠ACE = 20°, find:
(i)∠BEC (ii) ∠ACB
(iii) ∠BCD (iv) ∠CED.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q14.1
Solution:

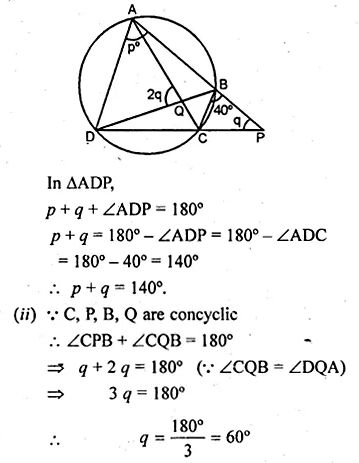

(a) (i) Given : ABCD is a cyclic quadrilateral.
Ext. ∠PBC = ∠ADC
=> 40° = ∠ADC
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q14.2
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q14.3
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q14.4
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q14.5

Question 15.

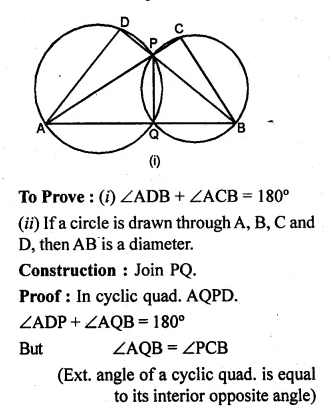

(a) In the figure (i) given below, APC, AQB and BPD are straight lines.

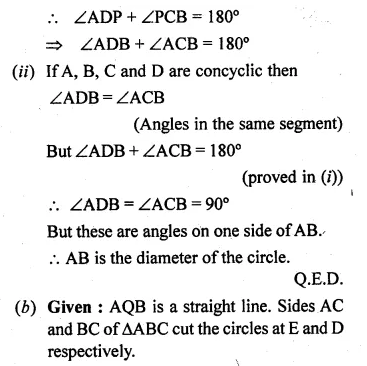

(i) Prove that ∠ADB + ∠ACB = 180°.
(ii) If a circle can be drawn through A, B, C and D, Prove that it has AB as diameter
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q15.1

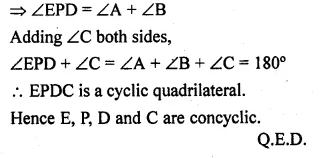

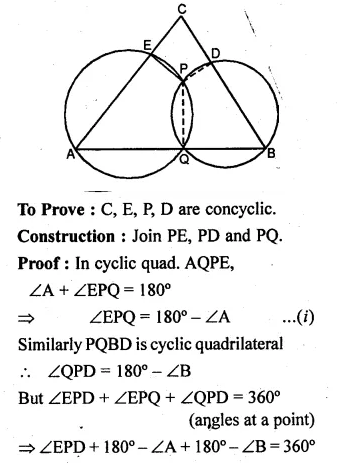

(b) In the figure (ii) given below, AQB is a straight line. Sides AC and BC of ∆ABC cut the circles at E and D respectively. Prove that the points C, E, P and D are concyclic.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q15.2
Solution:
(a) Given : In the figure, APC, AQB and BPD are straight lines.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q15.3
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q15.4
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q15.5
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q15.6

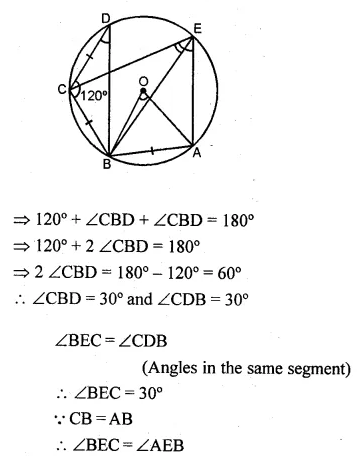

Question 16.

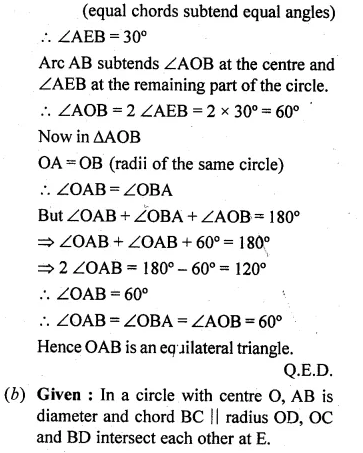

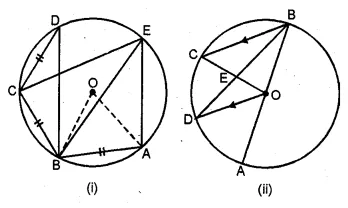

(a) In the figure (i) given below, chords AB, BC and CD of a circle with centre O are equal. If ∠BCD = 120°, find
(i) ∠BDC (ii) ∠BEC
(iii) ∠AEC (iv) ∠AOB.
Hence Prove that AOAB is equilateral.

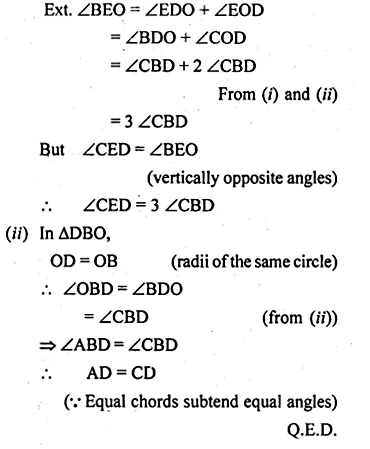

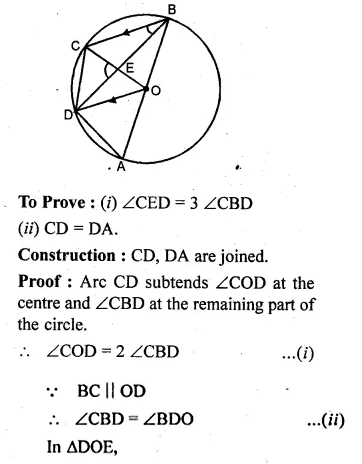

(b) In the figure (ii) given below, AB is a diameter of a circle with centre O. The chord BC of the circle is parallel to the radius OD and the lines OC and BD meet at E. Prove that
(i) ∠CED = 3 ∠CBD (ii) CD = DA.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q16.1
Solution:
(a) In ∆BCD, BC = CD
∠CBD = ∠CDB
But ∠BCD + ∠CBD + ∠CDB = 180°
(∵ Angles of a triangle)
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q16.2
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q16.3
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q16.4
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q16.5

Question 17.

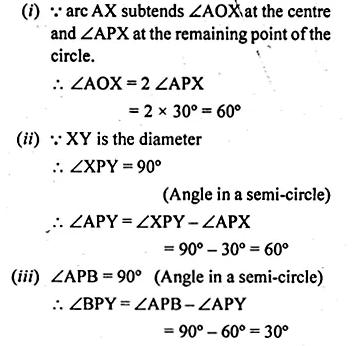

(a) In the adjoining figure, (i) given below AB and XY are diameters of a circle with centre O. If ∠APX = 30°, find
(i) ∠AOX (ii) ∠APY (iii) ∠BPY (iv) ∠OAX.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q17.1

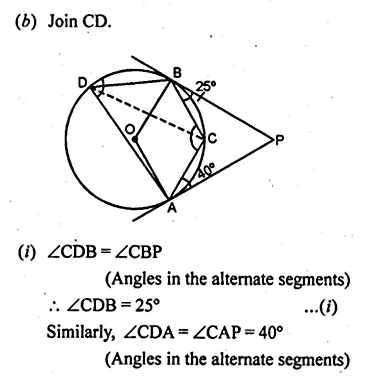

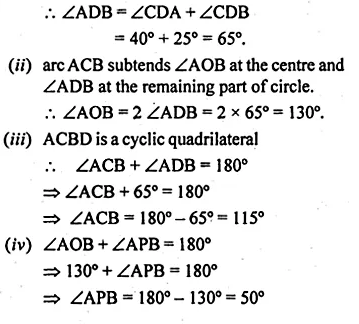

(b) In the figure (ii) given below, AP and BP are tangents to the circle with centre O. If ∠CBP = 25° and ∠CAP = 40°, find :
(i) ∠ADB (ii) ∠AOB (iii) ∠ACB (iv) ∠APB.
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q17.2
Solution:

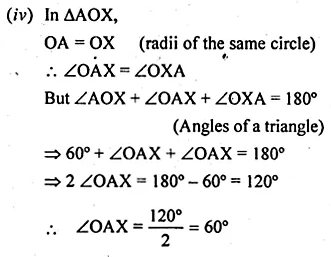

(a) AB and XY are diameters of a circle with centre O.
∠APX = 30°.
To find :
(i) ∠AOX (ii) ∠APY
(iii) ∠BPY (iv) ∠OAX
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q17.3
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q17.4
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q17.5
ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test Q17.6

Hope given ML Aggarwal Class 10 Solutions for ICSE Maths Chapter 16 Circles Chapter Test are helpful to complete your math homework.

If you have any doubts, please comment below. APlusTopper try to provide online math tutoring for you.

Filed Under: ML Aggarwal ICSE Tagged With: icse maths book for class 10 solved, m.l. aggarwal maths for class 10 icse, ml aggarwal class 10 solutions pdf download, ML Aggarwal ICSE Solutions, ML Aggarwal ICSE Solutions for Class 10 Maths, ml aggarwal maths for class 10 solutions cbse, ml aggarwal maths for class 10 solutions pdf download, ml aggarwal pdf, ML Aggarwal Solutions, understanding icse mathematics class 10

Primary Sidebar

  • MCQ Questions
  • RS Aggarwal Solutions
  • RS Aggarwal Solutions Class 10
  • RS Aggarwal Solutions Class 9
  • RS Aggarwal Solutions Class 8
  • RS Aggarwal Solutions Class 7
  • RS Aggarwal Solutions Class 6
  • ICSE Solutions
  • Selina ICSE Solutions
  • Concise Mathematics Class 10 ICSE Solutions
  • Concise Physics Class 10 ICSE Solutions
  • Concise Chemistry Class 10 ICSE Solutions
  • Concise Biology Class 10 ICSE Solutions
  • Concise Mathematics Class 9 ICSE Solutions
  • Concise Physics Class 9 ICSE Solutions
  • Concise Chemistry Class 9 ICSE Solutions
  • Concise Biology Class 9 ICSE Solutions
  • ML Aggarwal Solutions
  • ML Aggarwal Class 10 Solutions
  • ML Aggarwal Class 9 Solutions
  • ML Aggarwal Class 8 Solutions
  • ML Aggarwal Class 7 Solutions
  • ML Aggarwal Class 6 Solutions
  • HSSLive Plus One
  • HSSLive Plus Two
  • Kerala SSLC

Recent Posts

  • Plus One Accountancy Chapter Wise Previous Questions Chapter 9 Accounts from Incomplete Records
  • Plus One Accountancy Notes Chapter 7 Bill of Exchange
  • Plus Two Accountancy Notes Chapter 3 Reconstitution of a Partnership Firm-Admission of Partner
  • Plus One Accountancy Notes Chapter 3 Recording of Transactions – I & Recording of Transactions – II
  • Plus One Economics Chapter Wise Questions and Answers Chapter 13 Organisation of Data
  • Plus One Accountancy Chapter Wise Previous Questions Chapter 6 Depreciation, Provisions and Reserves
  • Plus One Accountancy Notes Chapter 6 Depreciation, Provisions and Reserves
  • Plus One Accountancy Chapter Wise Previous Questions Chapter 10 Applications of Computers in Accounting
  • Plus Two Accountancy Chapter Wise Questions and Answers Chapter 1 Accounting for Not For Profit Organisation
  • Plus One Accountancy Notes Chapter 5 Trial Balance and Rectification of Errors
  • Plus One Economics Chapter Wise Questions and Answers Chapter 18 Index Numbers

Footer

  • RS Aggarwal Solutions
  • RS Aggarwal Solutions Class 10
  • RS Aggarwal Solutions Class 9
  • RS Aggarwal Solutions Class 8
  • RS Aggarwal Solutions Class 7
  • RS Aggarwal Solutions Class 6
  • Picture Dictionary
  • English Speech
  • ICSE Solutions
  • Selina ICSE Solutions
  • ML Aggarwal Solutions
  • HSSLive Plus One
  • HSSLive Plus Two
  • Kerala SSLC
  • Distance Education
DisclaimerPrivacy Policy
Area Volume Calculator
