## Selina Concise Mathematics Class 10 ICSE Solutions Reflection (In x-axis, y-axis, x=a, y=a and the origin ; Invariant Points)

**Selina Publishers Concise Mathematics Class 10 ICSE Solutions Chapter 12 ****Reflection (In x-axis, y-axis, x=a, y=a and the origin ; Invariant Points)**

### Reflection Exercise 12A – Selina Concise Mathematics Class 10 ICSE Solutions

**Question 1.**

Complete the following table:

Point | Transformation | Image |

(5, -7) | (-5, 7) | |

(4, 2) | Reflection in x-axis | |

Reflection in y-axis | (0, 6) | |

(6, -6) | (-6, 6) | |

(4, -8) | (-4, -8) |

**Solution:**

Point | Transformation | Image |

(5, -7) | Reflection in origin | (-5, 7) |

(4, 2) | Reflection in x-axis | (4, -2) |

(0, 6) | Reflection in y-axis | (0, 6) |

(6, -6) | Reflection in origin | (-6, 6) |

(4, -8) | Reflection in y-axis | (-4, -8) |

**Question 2.**

A point P is its own image under the reflection in a line l. Describe the position of point the P with respect to the line l.

**Solution:**

Since, the point P is its own image under the reflection in the line l. So, point P is an invariant point.

Hence, the position of point P remains unaltered.

**Question 3.**

State the co-ordinates of the following points under reflection in x-axis:

(i) (3, 2)

(ii) (-5, 4)

(iii) (0, 0)

**Solution:**

(i) (3, 2)

The co-ordinate of the given point under reflection in the x-axis is (3, -2).

(ii) (-5, 4)

The co-ordinate of the given point under reflection in the x-axis is (-5, -4).

(iii) (0, 0)

The co-ordinate of the given point under reflection in the x-axis is (0, 0).

**Question 4.**

State the co-ordinates of the following points under reflection in y-axis:

(i) (6, -3)

(ii) (-1, 0)

(iii) (-8, -2)

**Solution:**

(i) (6, -3)

The co-ordinate of the given point under reflection in the y-axis is (-6, -3).

(ii) (-1, 0)

The co-ordinate of the given point under reflection in the y-axis is (1, 0).

(iii) (-8, -2)

The co-ordinate of the given point under reflection in the y-axis is (8, -2).

**Question 5.**

State the co-ordinates of the following points under reflection in origin:

(i) (-2, -4)

(ii) (-2, 7)

(iii) (0, 0)

**Solution:**

(i) (-2, -4)

The co-ordinate of the given point under reflection in origin is (2, 4).

(ii) (-2, 7)

The co-ordinate of the given point under reflection in origin is (2, -7).

(iii) (0, 0)

The co-ordinate of the given point under reflection in origin is (0, 0).

**Question 6.**

State the co-ordinates of the following points under reflection in the line x = 0:

(i) (-6, 4)

(ii) (0, 5)

(iii) (3, -4)

**Solution:**

(i) (-6, 4)

The co-ordinate of the given point under reflection in the line x = 0 is (6, 4).

(ii) (0, 5)

The co-ordinate of the given point under reflection in the line x = 0 is (0, 5).

(iii) (3, -4)

The co-ordinate of the given point under reflection in the line x = 0 is (-3, -4).

**Question 7.**

State the co-ordinates of the following points under reflection in the line y = 0:

(i) (-3, 0)

(ii) (8, -5)

(iii) (-1, -3)

**Solution:**

(i) (-3, 0)

The co-ordinate of the given point under reflection in the line y = 0 is (-3, 0).

(ii) (8, -5)

The co-ordinate of the given point under reflection in the line y = 0 is (8, 5).

(iii) (-1, -3)

The co-ordinate of the given point under reflection in the line y = 0 is (-1, 3).

**Question 8.**

A point P is reflected in the x-axis. Co-ordinates of its image are (-4, 5).

(i) Find the co-ordinates of P.

(ii) Find the co-ordinates of the image of P under reflection in the y-axis.

**Solution:**

(i) Since, M_{x} (-4, -5) = (-4, 5)

So, the co-ordinates of P are (-4, -5).

(ii) Co-ordinates of the image of P under reflection in the y-axis (4, -5).

**Question 9.**

A point P is reflected in the origin. Co-ordinates of its image are (-2, 7).

(i) Find the co-ordinates of P.

(ii) Find the co-ordinates of the image of P under reflection in the x-axis.

**Solution:**

(i) Since, M_{O} (2, -7) = (-2, 7)

So, the co-ordinates of P are (2, -7).

(ii) Co-ordinates of the image of P under reflection in the x-axis (2, 7).

**Question 10.**

The point (a, b) is first reflected in the origin and then reflected in the y-axis to P’. If P’ has co-ordinates (4, 6); evaluate a and b.

**Solution:**

M_{O} (a, b) = (-a, -b)

M_{y} (-a, -b) = (a, -b)

Thus, we get the co-ordinates of the point P’ as (a, -b). It is given that the co-ordinates of P’ are (4, 6).

On comparing the two points, we get, a = 4 and b = -6

**Question 11.**

The point P (x, y) is first reflected in the x-axis and reflected in the origin to P’. If P’ has co-ordinates (-8, 5); evaluate x and y.

**Solution:**

M_{x} (x, y) = (x, -y)

M_{O} (x, -y) = (-x, y)

Thus, we get the co-ordinates of the point P’ as (-x, y). It is given that the co-ordinates of P’ are (-8, 5).

On comparing the two points, we get, x = 8 and y = 5

**Question 12.**

The point A (-3, 2) is reflected in the x-axis to the point A’. Point A’ is then reflected in the origin to point A”.

(i) Write down the co-ordinates of A”.

(ii) Write down a single transformation that maps A onto A”.

**Solution:**

(i) The reflection in x-axis is given by M_{x} (x, y) = (x, -y).

A’ = reflection of A (-3, 2) in the x- axis = (-3, -2).

The reflection in origin is given by M_{O} (x, y) = (-x, -y).

A” = reflection of A’ (-3, -2) in the origin = (3, 2)

(ii) The reflection in y-axis is given by M_{y} (x, y) = (-x, y).

The reflection of A (-3, 2) in y-axis is (3, 2).

Thus, the required single transformation is the reflection of A in the y-axis to the point A”.

**Question 13.**

The point A (4, 6) is first reflected in the origin to point A’. Point A’ is then reflected in the y-axis to the point A”.

(i) Write down the co-ordinates of A”.

(ii) Write down a single transformation that maps A onto A”.

**Solution:**

(i) The reflection in origin is given by M_{O} (x, y) = (-x, -y).

A’ = reflection of A (4, 6) in the origin = (-4, -6)

The reflection in y-axis is given by M_{y} (x, y) = (-x, y).

A” = reflection of A’ (-4, -6) in the y-axis = (4, -6)

(ii) The reflection in x-axis is given by M_{x} (x, y) = (x, -y).

The reflection of A (4, 6) in x-axis is (4, -6).

Thus, the required single transformation is the reflection of A in the x-axis to the point A”.

**Question 14.**

The triangle ABC, where A is (2, 6), B is (-3, 5) and C is (4, 7), is reflected in the y-axis to triangle A’B’C’. Triangle A’B’C’ is then reflected in the origin to triangle A”B”C”.

(i) Write down the co-ordinates of A”, B” and C”.

(ii) Write down a single transformation that maps triangle ABC onto triangle A”B”C”.

**Solution:**

(i) Reflection in y-axis is given by M_{y} (x, y) = (-x, y)

∴ A’ = Reflection of A (2, 6) in y-axis = (-2, 6)

Similarly, B’ = (3, 5) and C’ = (-4, 7)

Reflection in origin is given by M_{O} (x, y) = (-x, -y)

∴ A” = Reflection of A’ (-2, 6) in origin = (2, -6)

Similarly, B” = (-3, -5) and C” = (4, -7)

(ii) A single transformation which maps triangle ABC to triangle A”B”C” is reflection in x-axis.

**Question 15.**

P and Q have co-ordinates (-2, 3) and (5, 4) respectively. Reflect P in the x-axis to P’ and Q in the y-axis to Q’. State the co-ordinates of P’ and Q’.

**Solution:**

Reflection in x-axis is given by M_{x} (x, y) = (x, -y)

P’ = Reflection of P(-2, 3) in x-axis = (-2, -3)

Reflection in y-axis is given by M_{y} (x, y) = (-x, y)

Q’ = Reflection of Q(5, 4) in y-axis = (-5, 4)

Thus, the co-ordinates of points P’ and Q’ are (-2, -3) and (-5, 4) respectively.

**Question 16.**

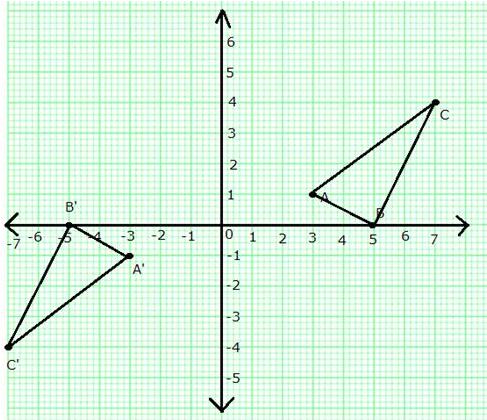

On a graph paper, plot the triangle ABC, whose vertices are at points A (3, 1), B (5, 0) and C (7, 4).

On the same diagram, draw the image of the triangle ABC under reflection in the origin O (0, 0).

**Solution:**

The graph shows triangle ABC and triangle A’B’C’ which is obtained when ABC is reflected in the origin.

**Question 17.**

Find the image of point (4, -6) under the following operations:

(i) M_{x} . M_{y} (ii) M_{y} . M_{x}

(iii) M_{O} . M_{x} (iv) M_{x} . M_{O}

(v) M_{O} . M_{y} (vi) M_{y} . M_{O}

Write down a single transformation equivalent to each operation given above. State whether:

(a) M_{O} . M_{x} = M_{x} . M_{O}

(b) M_{y} . M_{O} = M_{O} . M_{y}

**Solution:**

(i) M_{x} . M_{y }(4, -6) = M_{x} (-4, -6) = (-4, 6)

Single transformation equivalent to M_{x} . M_{y} is M_{O}.

(ii) M_{y} . M_{x }(4, -6) = M_{y} (4, 6) = (-4, 6)

Single transformation equivalent to M_{y} . M_{x} is M_{O}.

(iii) M_{O} . M_{x }(4, -6) = M_{O} (4, 6) = (-4, -6)

Single transformation equivalent to M_{O} . M_{x} is M_{y}.

(iv) M_{x} . M_{O }(4, -6) = M_{x} (-4, 6) = (-4, -6)

Single transformation equivalent to M_{x} . M_{O} is M_{y}.

(v) M_{O} . M_{y }(4, -6) = M_{O} (-4, -6) = (4, 6)

Single transformation equivalent to M_{O} . M_{y} is M_{x}.

(vi) M_{y} . M_{O }(4, -6) = M_{y} (-4, 6) = (4, 6)

Single transformation equivalent to M_{x} . M_{O} is M_{x}.

From (iii) and (iv), it is clear that M_{O} . M_{x} = M_{x} . M_{O}.

From (v) and (vi), it is clear that M_{y} . M_{O} = M_{O} . M_{y}.

**Question 18.**

Point A (4, -1) is reflected as A’ in the y-axis. Point B on reflection in the x-axis is mapped as B’ (-2, 5). Write down the co-ordinates of A’ and B.

**Solution:**

Reflection in y-axis is given by M_{y} (x, y) = (-x, y)

A’ = Reflection of A(4, -1) in y-axis = (-4, -1)

Reflection in x-axis is given by M_{x} (x, y) = (x, -y)

B’ = Reflection of B in x-axis = (-2, 5)

Thus, B = (-2, -5)

**Question 19.**

The point (-5, 0) on reflection in a line is mapped as (5, 0) and the point (-2, -6) on reflection in the same line is mapped as (2, -6).

(a) Name the line of reflection.

(b) Write down the co-ordinates of the image of (5, -8) in the line obtained in (a).

**Solution:**

(a) We know that reflection in the line x = 0 is the reflection in the y-axis.

It is given that:

Point (-5, 0) on reflection in a line is mapped as (5, 0).

Point (-2, -6) on reflection in the same line is mapped as (2, -6).

Hence, the line of reflection is x = 0.

(b) It is known that M_{y} (x, y) = (-x, y)

Co-ordinates of the image of (5, -8) in the line x = 0 are (-5, -8).

### Reflection Exercise 12B – Selina Concise Mathematics Class 10 ICSE Solutions

**Question 1.**

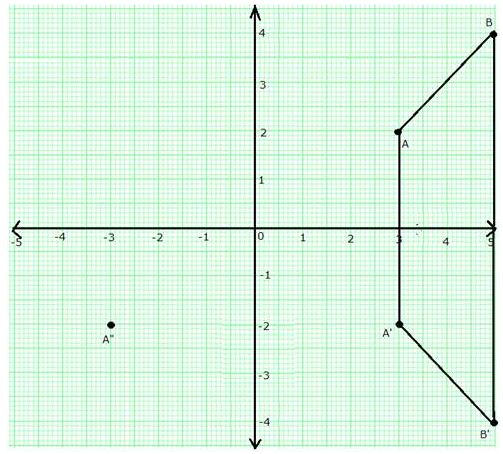

Attempt this question on graph paper.

(a) Plot A (3, 2) and B (5, 4) on graph paper. Take 2 cm = 1 unit on both the axes.

(b) Reflect A and B in the x-axis to A’ and B’ respectively. Plot these points also on the same graph paper.

(c) Write down:

(i) the geometrical name of the figure ABB’A’;

(ii) the measure of angle ABB’;

(iii) the image of A” of A, when A is reflected in the origin.

(iv) the single transformation that maps A’ to A”.

**Solution:**

(c)

(i) From graph, it is clear that ABB’A’ is an isosceles trapezium.

(ii) The measure of angle ABB’ is 45°.

(iii) A” = (-3, -2)

(iv) Single transformation that maps A’ to A” is the reflection in y-axis.

**Question 2.**

Points (3, 0) and (-1, 0) are invariant points under reflection in the line L_{1}; points (0, -3) and (0, 1) are invariant points on reflection in line L_{2}.

(i) Name or write equations for the lines L_{1} and L_{2}.

(ii) Write down the images of the points P (3, 4) and Q (-5, -2) on reflection in line L_{1}. Name the images as P’ and Q’ respectively.

(iii) Write down the images of P and Q on reflection in L_{2}. Name the images as P” and Q” respectively.

(iv) State or describe a single transformation that maps P’ onto P”.

**Solution:**

(i) We know that every point in a line is invariant under the reflection in the same line.

Since points (3, 0) and (-1, 0) lie on the x-axis.

So, (3, 0) and (-1, 0) are invariant under reflection in x-axis.

Hence, the equation of line L_{1} is y = 0.

Similarly, (0, -3) and (0, 1) are invariant under reflection in y-axis.

Hence, the equation of line L_{2} is x = 0.

(ii) P’ = Image of P (3, 4) in L_{1} = (3, -4)

Q’ = Image of Q (-5, -2) in L_{1} = (-5, 2)

(iii) P” = Image of P (3, 4) in L_{2} = (-3, 4)

Q” = Image of Q (-5, -2) in L_{2} = (5, -2)

(iv) Single transformation that maps P’ onto P” is reflection in origin.

**Question 3.**

(i) Point P (a, b) is reflected in the x-axis to P’ (5, -2). Write down the values of a and b.

(ii) P” is the image of P when reflected in the y-axis. Write down the co-ordinates of P”.

(iii) Name a single transformation that maps P’ to P”.

**Solution:**

(i) We know M_{x} (x, y) = (x, -y)

P’ (5, -2) = reflection of P (a, b) in x-axis.

Thus, the co-ordinates of P are (5, 2).

Hence, a = 5 and b = 2.

(ii) P” = image of P (5, 2) reflected in y-axis = (-5, 2)

(iii) Single transformation that maps P’ to P” is the reflection in origin.

**Question 4.**

The point (-2, 0) on reflection in a line is mapped to (2, 0) and the point (5, -6) on reflection in the same line is mapped to (-5, -6).

(i) State the name of the mirror line and write its equation.

(ii) State the co-ordinates of the image of (-8, -5) in the mirror line.

**Solution:**

(i) We know reflection of a point (x, y) in y-axis is (-x, y).

Hence, the point (-2, 0) when reflected in y-axis is mapped to (2, 0).

Thus, the mirror line is the y-axis and its equation is x = 0.

(ii) Co-ordinates of the image of (-8, -5) in the mirror line (i.e., y-axis) are (8, -5).

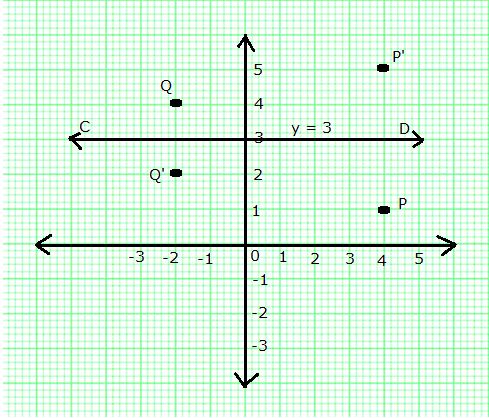

**Question 5.**

The points P (4, 1) and Q (-2, 4) are reflected in line y = 3. Find the co-ordinates of P’, the image of P and Q’, the image of Q.

**Solution:**

The line y = 3 is a line parallel to x-axis and at a distance of 3 units from it.

Mark points P (4, 1) and Q (-2, 4).

From P, draw a straight line perpendicular to line CD and produce. On this line mark a point P’ which is at the same distance above CD as P is below it.

The co-ordinates of P’ are (4, 5).

Similarly, from Q, draw a line perpendicular to CD and mark point Q’ which is at the same distance below CD as Q is above it.

The co-ordinates of Q’ are (-2, 2).

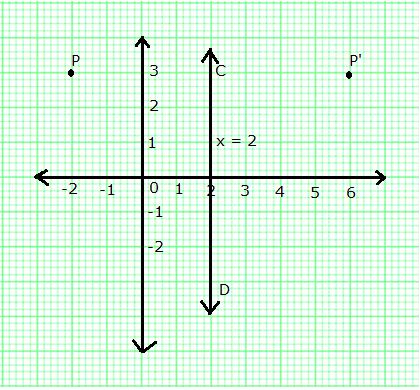

**Question 6.**

A point P (-2, 3) is reflected in line x = 2 to point P’. Find the coordinates of P’.

**Solution:**

The line x = 2 is a line parallel to y-axis and at a distance of 2 units from it.

Mark point P (-2, 3).

From P, draw a straight line perpendicular to line CD and produce. On this line mark a point P’ which is at the same distance to the right of CD as P is to the left of it.

The co-ordinates of P’ are (6, 3).

**Question 7.**

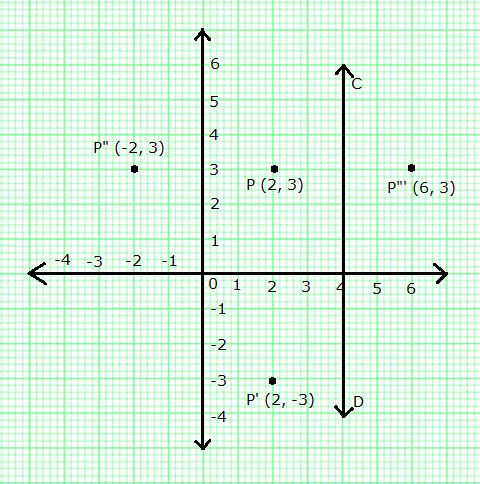

A point P (a, b) is reflected in the x-axis to P’ (2, -3). Write down the values of a and b. P” is the image of P, reflected in the y-axis. Write down the co-ordinates of P”. Find the co-ordinates of P”’, when P is reflected in the line, parallel to y-axis, such that x = 4.

**Solution:**

A point P (a, b) is reflected in the x-axis to P’ (2, -3).

We know M_{x} (x, y) = (x, -y)

Thus, co-ordinates of P are (2, 3). Hence, a = 2 and b = 3.

P” = Image of P reflected in the y-axis = (-2, 3)

P”’ = Reflection of P in the line (x = 4) = (6, 3)

**Question 8.**

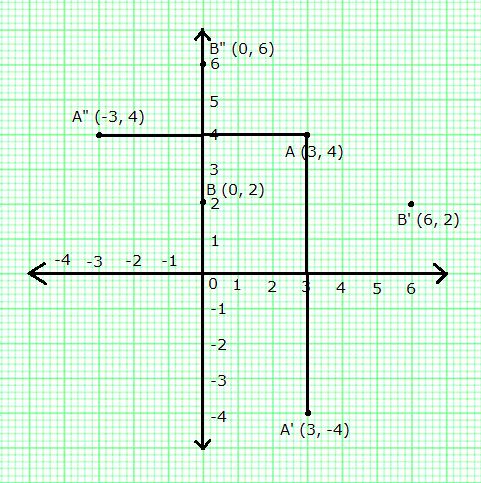

Points A and B have co-ordinates (3, 4) and (0, 2) respectively. Find the image:

(a) A’ of A under reflection in the x-axis.

(b) B’ of B under reflection in the line AA’.

(c) A” of A under reflection in the y-axis.

(d) B” of B under reflection in the line AA”.

**Solution:**

(a) A’ = Image of A under reflection in the x-axis = (3, -4)

(b) B’ = Image of B under reflection in the line AA’ = (6, 2)

(c) A” = Image of A under reflection in the y-axis = (-3, 4)

(d) B” = Image of B under reflection in the line AA” = (0, 6)

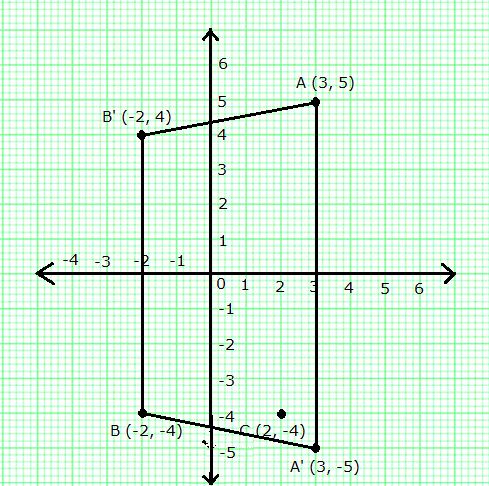

**Question 9.**

(i) Plot the points A (3, 5) and B (-2, -4). Use 1 cm = 1 unit on both the axes.

(ii) A’ is the image of A when reflected in the x-axis. Write down the co-ordinates of A’ and plot it on the graph paper.

(iii) B’ is the image of B when reflected in the y-axis, followed by reflection in the origin. Write down the co-ordinates of B’ and plot it on the graph paper.

(iv) Write down the geometrical name of the figure AA’BB’.

(v) Name the invariant points under reflection in the x-axis.

**Solution:**

(i) The points A (3, 5) and B (-2, -4) can be plotted on a graph as shown.

(ii) A’ = Image of A when reflected in the x-axis = (3, -5)

(iii) C = Image of B when reflected in the y-axis = (2, -4)

B’ = Image when C is reflected in the origin = (-2, 4)

(iv) Isosceles trapezium

(v) Any point that remains unaltered under a given transformation is called an invariant.

Thus, the required two points are (3, 0) and (-2, 0).

**Question 10.**

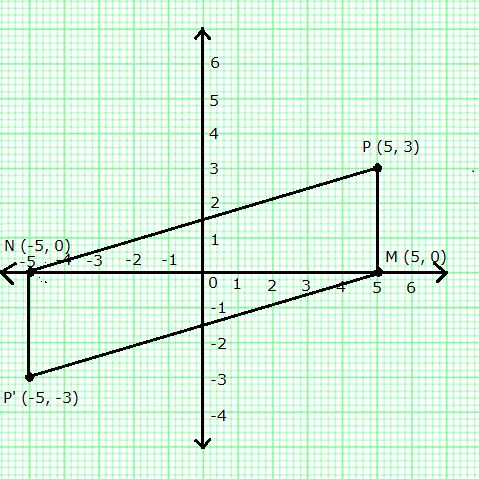

The point P (5, 3) was reflected in the origin to get the image P’.

(a) Write down the co-ordinates of P’.

(b) If M is the foot if the perpendicular from P to the x-axis, find the co-ordinates of M.

(c) If N is the foot if the perpendicular from P’ to the x-axis, find the co-ordinates of N.

(d) Name the figure PMP’N.

(e) Find the area of the figure PMP’N.

**Solution:**

(a) Co-ordinates of P’ = (-5, -3)

(b) Co-ordinates of M = (5, 0)

(c) Co-ordinates of N = (-5, 0)

(d) PMP’N is a parallelogram.

(e) Are of PMP’N = 2 (Area of D PMN)

= 2 × ½ × 10 × 3

= 30 sq. units

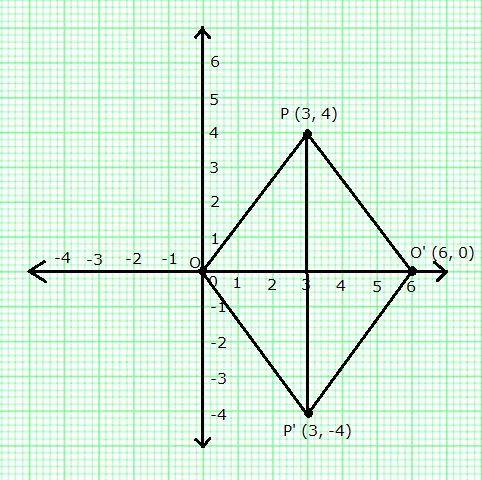

**Question 11.**

The point P (3, 4) is reflected to P’ in the x-axis; and O’ is the image of O (the origin) when reflected in the line PP’. Write:

(i) the co-ordinates of P’ and O’.

(ii) the length of the segments PP’ and OO’.

(iii) the perimeter of the quadrilateral POP’O’.

(iv) the geometrical name of the figure POP’O’.

**Solution:**

(i) Co-ordinates of P’ and O’ are (3, -4) and (6, 0) respectively.

(ii) PP’ = 8 units and OO’ = 6 units.

(iii) From the graph it is clear that all sides of the quadrilateral POP’O’ are equal.

In right Δ PO’Q,

PO’ = √(4)^{2} + (3)^{2} = 5 units

So, perimeter of quadrilateral POP’O’ = 4 PO’ = 4 × 5 units = 20 units

(iv) Quadrilateral POP’O’ is a rhombus.

**Question 12.**

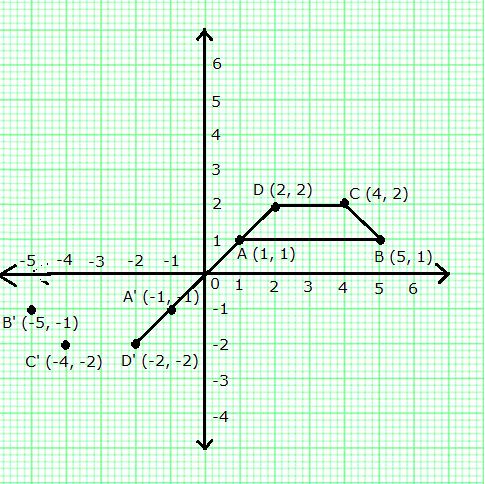

A (1, 1), B (5, 1), C (4, 2) and D (2, 2) are vertices of a quadrilateral. Name the quadrilateral ABCD. A, B, C, and D are reflected in the origin on to A’, B’, C’ and D’ respectively. Locate A’, B’, C’ and D’ on the graph sheet and write their co-ordinates. Are D, A, A’ and D’ collinear?

**Solution:**

Quadrilateral ABCD is an isosceles trapezium.

Co-ordinates of A’, B’, C’ and D’ are A'(-1, -1), B'(-5, -1), C'(-4, -2) and D'(-2, -2) respectively.

It is clear from the graph that D, A, A’ and D’ are collinear.

**Question 13.**

P and Q have co-ordinates (0, 5) and (-2, 4).

(a) P is invariant when reflected in an axis. Name the axis.

(b) Find the image of Q on reflection in the axis found in (i).

(c) (0, k) on reflection in the origin is invariant. Write the value of k.

(d) Write the co-ordinates of the image of Q, obtained by reflecting it in the origin followed by reflection in x-axis.

**Solution:**

(a) Any point that remains unaltered under a given transformation is called an invariant.

It is given that P (0, 5) is invariant when reflected in an axis. Clearly, when P is reflected in the y-axis then it will remain invariant. Thus, the required axis is the y-axis.

(b) The co-ordinates of the image of Q (-2, 4) when reflected in y-axis is (2, 4).

(c) (0, k) on reflection in the origin is invariant. We know the reflection of origin in origin is invariant. Thus, k = 0.

(d) Co-ordinates of image of Q (-2, 4) when reflected in origin = (2, -4)

Co-ordinates of image of (2, -4) when reflected in x-axis = (2, 4)

Thus, the co-ordinates of the point are (2, 4).

**Question PQ.**

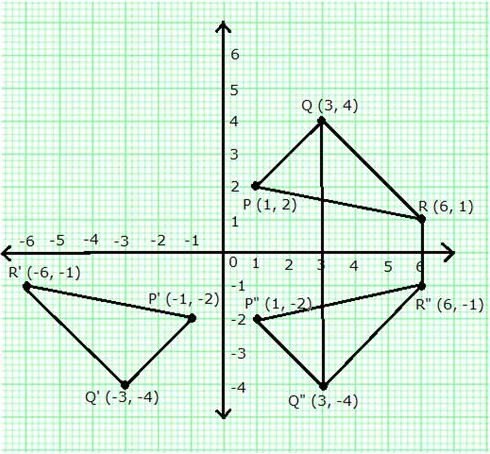

The points P (1, 2), Q (3, 4) and R (6, 1) are the vertices of PQR.

(a) Write down the co-ordinates of P’, Q’ and R’, if P’Q’R’ is the image of PQR, when reflected in the origin.

(b) Write down the co-ordinates of P”, Q” and R”, if P”Q”R” is the image of PQR, when reflected in the x-axis.

(c) Mention the special name of the quadrilateral QRR”Q” and find its area.

**Solution:**

(a) The co-ordinates of P’, Q’ and R’ are (-1, -2), (-3, -4) and (-6, -1) respectively.

(b) The co-ordinates of P”, Q” and R” are (1, -2), (3, -4) and (6, -1) respectively.

(c) The quadrilateral QRR”Q” is an isosceles trapezium.

Area of QRR”Q” = ½ (RR”+ QQ”) × Height

= ½ (2 + 8) × 3 = 15 sq units

**Question 14.**

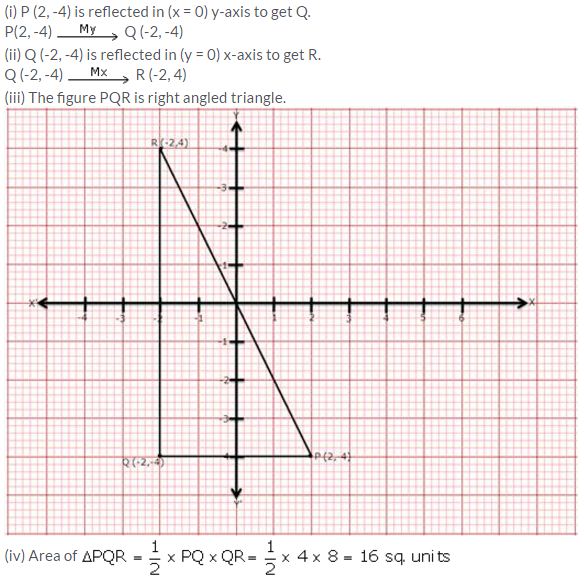

(i) The point P (2, -4) is reflected about the line x = 0 to get the image Q. Find the co-ordinates of Q.

(ii) The point Q is reflected about the line y = 0 to get the image R. Find the co-ordinates or R.

(iii) Name the figure PQR.

(iv) Find the area of figure PQR.

**Solution:**

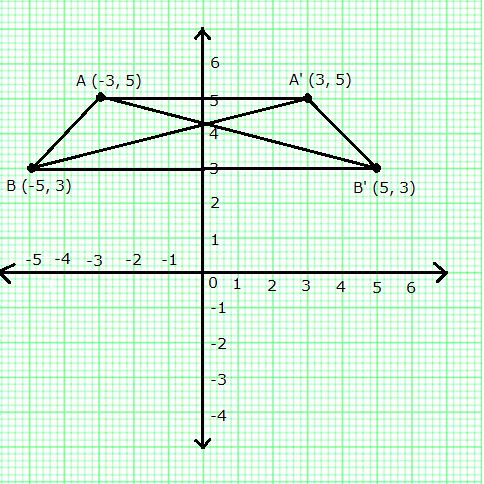

**Question PQ.**

A’ and B’ are images of A (-3, 5) and B (-5, 3) respectively on reflection in y-axis. Find:

(a) the co-ordinates of A’ and B’.

(b) Assign special name of quadrilateral AA’B’B.

(c) Are AB’ and BA’ equal in length?

**Solution:**

(a) The co-ordinates of A’ and B’ are (3, 5) and (5, 3).

(b) Quadrilateral AA’B’B is an isosceles trapezium.

(c) Yes, AB’ and BA’ are equal in length.

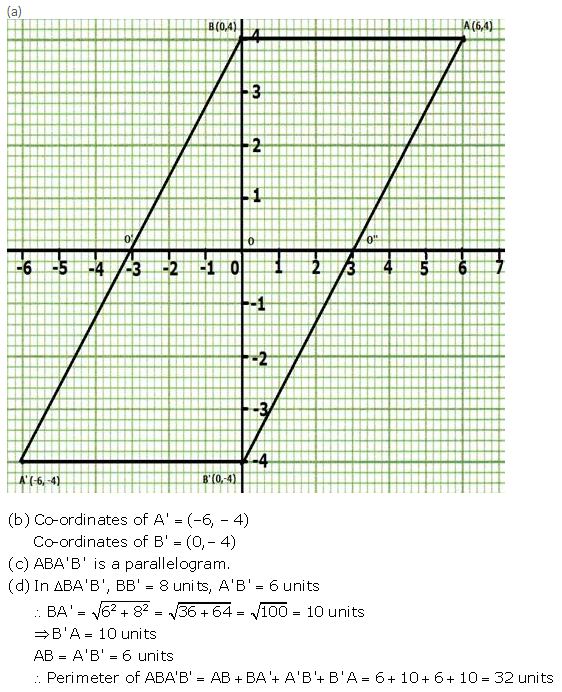

**Question 15.**

Using a graph paper, plot the point A (6, 4) and B (0, 4).

(a) Reflect A and B in the origin to get the image A’ and B’.

(b) Write the co-ordinates of A’ and B’.

(c) Sate the geometrical name for the figure ABA’B’.

(d) Find its perimeter.

**Solution:**

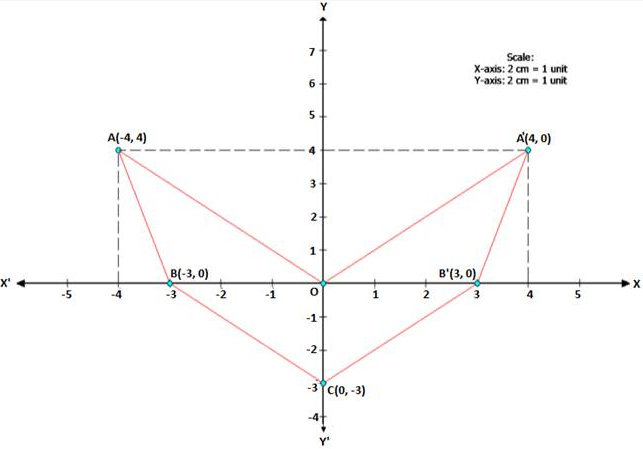

**Question 16. **Use graph paper for this question. (Take 2 cm = 1 unit along both x and y axis. Plot the points O (0, 0), A (-4, 4), B (-3, 0) and C (0, -3)

(i) Reflect points A and B on the y-axis and name them A’ and B’ respectively. Write down their coordinates.

(ii) Name the figure OABCB’A’.

(iii) State the line of symmetry of this figure.

**Solution:**

- A’ = (4, 4) AND B’ = (3, 0)
- The figure is an arrow head.
- The y-axis i.e. x = 0 is the line of symmetry of figure OABCB’A’.

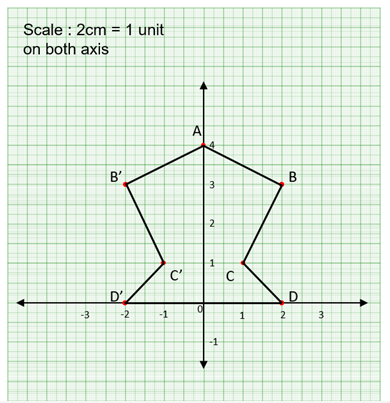

**Question 17. **

(i) Plotting A(0, 4), B(2, 3), C(1, 1) and D(2, 0).

(ii) Reflected points B'(-2, 3), C'(-1, 1) and D'(-2, 0).

(iii) The figure is symmetrical about x = 0

**More Resources for Selina Concise Class 10 ICSE Solutions**

- Selina Concise Mathematics Class 10 ICSE Solutions
- Selina Class 10 ICSE Physics Solutions
- Selina ICSE Class 10 Chemistry Solutions
- Selina Concise Biology Class 10 Solutions

ICSE Solutions Selina ICSE Solutions
