## Kerala Plus One Physics Notes Chapter 6 Work, Energy and Power

Summary

The Scalar Product

The scalar product (or) dot product of any two vectors \(\overrightarrow{\mathrm{A}}\) and \(\overrightarrow{\mathrm{B}}\) is defined as

Where ‘q’ is the angle between \(\overrightarrow{\mathrm{A}}\) and \(\overrightarrow{\mathrm{B}}\)

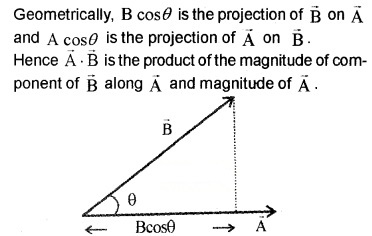

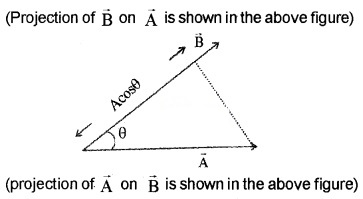

Note: The dot product of A and B is a scalar quantity. Geometrical meaning of \(\overrightarrow{\mathrm{A}}\) . \(\overrightarrow{\mathrm{B}}\)

We know \(\overrightarrow{\mathrm{A}}\) . \(\overrightarrow{\mathrm{B}}\) = ABcosθ

= A(Bcosθ)

= B(A cosθ)

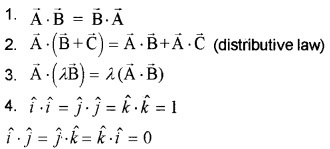

Properties

Question 1.

Answer:

Work Energy Theory

Statement:

The change in kinetic energy of a particle is equal to the work done on it by the net force.

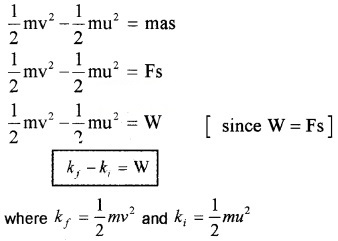

Proof:

We know v^{2} = u^{2} + 2as

v^{2} – u^{2} = 2as

Multiplying both sides with m/2; we get

Work

Definition:

The work done by the force is defined as the product of component of the force in the direction of the displacement and the magnitude of this displacement.

__Explanation__

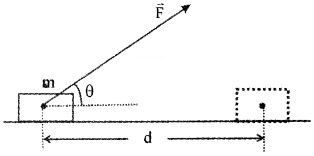

Consider a constant force \(\overrightarrow{\mathrm{F}}\) acting on an object of mass m. The object undergoes a displacement d in the positive x-direction as shown in the figure. The projection of \(\overrightarrow{\mathrm{F}}\) on d is Fcosθ.

Hence work done w = Fcosθ. d

There are three types of workdone

- positive workdone
- negative workdone
- zero workdone

1. Positive workdone:

Work will be positive, if the displacement has a component in the direction of the force. The angle between force and displacement is zero for positive workdone.

When q = 0 w = Fd

__Example__

- A person carrying a load climbing up a staircase
- A body being pushed along a surface
- A body falling under gravitation force.

2. Negative workdone:

Work will be negative, if the displacement has a component opposite to the force F. The angle between force and displacement lies between 90° and 180°.

__Example__

- When a person carrying a load on his head climbs down a staircase, (applied force by him on the load is upwards and the displacement is opposite to it)
- When a body slides along a rough surface the displacement is opposite to the frictional force. Therefore the workdone by the frictional force is negative.

3. Zero work done:

Work will be zero, if there is no component along the direction of force. The angle between applied force and displacement is 90°.

__Example__

1. When a person carrying a load on his head walks along a level road, the displacement is perpendicular to the force and therefore the work done is zero.

2. In uniform circular motion the centripetal force is along the radius and direction of displacement is along the tangent.

Kinetic Energy

Kinetic energy is the energy possessed by the body because of it’s motion. The kinetic energy of a body of mass m and velocity v,

Workdone By Variable Force

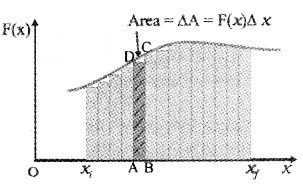

Consider a body moving from x_{i} to x_{f} under a variable force. The variation of force with position is shown in graph. Consider a small AB = Dx. The force in this interval is nearly a constant.

Hence workdone to move a body from A to B is. Dw = F(x) Dx.F(x)dx gives the area of rectangle ABCD. When we add successive rectangular areas, we get total work as

When we take Dx tends to zero, the summation can be replaced integration.

Work Energy Theory For A Variable Force

Work energy theorem for a variable force can be derived from work-energy theorem of constant force. According work energy theorem for constant force, Change in kE = work done

dk = dw

dk = F dx

Integrating from the initial position (x_{i}) to (x_{f}) we get

Concept Of Potential Energy

Potential energy of a body is the energy possessed by it because of its position.

__Explanation__

Considera mass ‘m’on the surface of the earth. If this mass is raised to height ‘h’ against force of gravity,

work done w = Force × displacement

w = mg × h

w = mgh

This work gets stored as gravitational potential energy.

ie; Gravitational energy V = mgh.

1. Relation between gravitational potential and gravitational force:

If we take negative of the derivative of V(h) with respect to height (h), we get

Where F is the gravitational force. The above equation shows that the gravitational force is the negative derivative of the gravitational potential.

2. Relation between kinetic energy and gravitational potential energy:

Considera body of mass ‘m’ at a height ‘h’ from the surface of the earth. The potential energy at height h

pE = mgh ______(1)

If the body is allowed to fall from this height, it attains kinetic energy,

kE = \(\frac{1}{2}\)mv^{2} _______(2)

But velocity at surface can be found from the formula

v^{2} = u^{2} + 2as

v^{2} = 2gh [Since u = 0, a = g, s = h]

Substituting this value in eq(2), we get

kE = \(\frac{1}{2}\) m2gh

kE = mgh

kE = pE [∵ pE = mgh]

Properties of conservative force:

- A force is conservative, if it can be derived from a scalar quantity (ie F = – \(\frac{d V}{d x}\))
- The workdone by the conservative force depends only on the endpoints.
- The workdone by conservative force in a closed path is zero.

Conservation of mechanical energy for a freely falling body:

Consider a body of mass ‘m’ at a height h from the ground.

__Total energy at point A__

Potential energy at A,

PE = mgh

Kinetic energy, KE = \(\frac{1}{2}\)mv^{2} = 0

(since the body at rest, v = 0).

∴ Total mechanical energy = PE + KE = mgh + 0

= mgh.

__Total energy at point B__

The body travels a distance x when it reaches B. The velocity at B, can be found using the formula.

v^{2} = u^{2} + 2as

v^{2} = 0 + 2 gx

∴ KE at B, = \(\frac{1}{2}\)mv^{2}

\(\frac{1}{2}\)m2gx

= mgx

P.E. at B, = mg (h – x)

Total mechanical energy = PE + KE

= mg (h – x) + mgx = mgh.

__Total energy at C__

Velocity at C can be found using the formula

v^{2} = u^{2} + 2as

v^{2} = 0 + 2gh

∴ KE at C, = \(\frac{1}{2}\)mv^{2}

\(\frac{1}{2}\)m2gh

= mgh

P.E. at C = 0

Total energy = PE + KE

= 0 + mgh = mgh.

The Potential Energy Of A Spring

Hooks law:

The restoring force developed in the spring is proportional to the displacement x and it is opposite to the displacement,

ie Fα – x

Where k is a constant called the spring constant.

Potential energy stored in a spring:

Consider a massless spring fixed to rigid support at one end and a body attached to the other end. The body moves on a frictionless surface.

If a body is displaced by a distance dx, The workdone for this displacement

dw = Fdx

∴ Total work done to move the body from x = 0 to x

This workdone is stored potential energy in the spring. Hence potential energy of a spring.

Spring force is a conservative force:

If the spring is displaced from an initial position x_{i} to x_{f} and again to x_{i};

W = 0

This zero workdone means that the spring force is conservative.

Energy of an oscillating spring at any point:

If the block of mass ‘m’ (attached to massless spring) is extended to x_{m} and released, it will oscillate in between +x_{m} and -x_{m}. The total mechanical energy at any point x, (lies between -x_{m} and +x_{m}) is

This block mass ‘m’ has maximum velocity at equilibrium equi¬librium position (x = 0). At this position, the potential energy stored in a spring is completely converted in to kinetic energy.

__Graphical variation of energy__

The Law Of Conservation Of Energy

Statement:

Energy cannot be created or destroyed. It can be transformed from one form to another.

Question 2.

Prove the conservation of energy for a freely falling body.

Answer:

Conservation of mechanical energy for a freely falling body:

Consider a body of mass ‘m’ at a height h from the ground.

__Total energy at point A__

Potential energy at A,

PE = mgh

Kinetic energy, KE = \(\frac{1}{2}\)mv^{2} = 0

(since the body at rest, v = 0).

∴ Total mechanical energy = PE + KE = mgh + 0 = mgh.

__Total energy at point B__

The body travels a distance x when it reaches B. The velocity at B, can be found using the formula.

v^{2} = u^{2} + 2as

v^{2} = 0 + 2 gx

∴ KE at B, = \(\frac{1}{2}\)mv^{2}

\(\frac{1}{2}\)m2gx

= mgx

P.E. at B, = mg (h – x)

Total mechanical energy = PE + KE

= mg (h – x) + mgx = mgh.

__Total energy at C__

Velocity at C can be found using the formula

v^{2} = u^{2} + 2as

v^{2} = 0 + 2gh

∴ KE at C, = \(\frac{1}{2}\)mv^{2}

\(\frac{1}{2}\)m2gh

= mgh

P.E. at C = 0

Total energy = PE + KE

= 0 + mgh = mgh.

Various Form Of Energy

1. Heat:

Heat is one form of energy, it is the internal energy of the molecule.

2. Chemical energy:

Chemical energy arises from the fact that the molecules participating in the chemical reaction have different binding energies.

If the total energy of the reactants is more than the products of the reaction, heat is released and the reaction is said to be exothermic reaction. If the heat is absorbed in chemical reaction it is called endothermic.

3. Electrical energy:

The flow of electrons produce electric current.

4. The equivalence of mass and energy Mass and energy are equivalent and are related by the relation. E = mc^{2}, where C, the speed of light in. vacuum.

Question 3.

How much energy will be liberated, when 1 Kg. matter converts in to energy?

Answer:

Energy liberated E = mc^{2}

E = 1 × (3 × 10^{8})^{2}

= 9 × 10^{16}J.

5. Nuclear energy:

Nuclear energy is obtained from the sun. In this case four light hydrogen nuclei fuse to form a helium nucleus, whose mass is less than the sum of the masses of the reactants. This mass difference (called the mass defect on) is the source of energy.

Power

Power is defined as the time rate at which work is done.

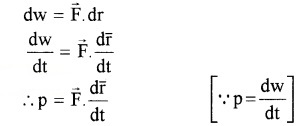

Expression for power in terms of F and V:

The work done (dw) by a force F for a displacement dr is

Where \(\overrightarrow{\mathrm{V}}\) is the instantaneous velocity when the force is \(\overrightarrow{\mathrm{F}}\).

Unit:

Unit of power is watt. 1 watt = 1J/S.

There is another unit of power, namely the horsepower (hp)

1 hp = 746w

Kilowatt-hour kwh:

Kilowatt-hour (kwh) is the unit of energy used to measure electrical energy. One kilowatt-hour is the energy consumed in one hour at the rate of 1000 watts/ second.

1 kwh = 1000 watts × 60 × 60 seconds

= 3.6 × 106ws

1 kwh = 3.6 × 106J

Note : kwh is a unit of energy and not of power.

Collisions

There are two types of collisions.

- Elastic collision
- Inelastic collision

1. Elastic collision:

Elastic collision is one in which both momentum and kinetic energy are conserved.

Eg:

- collision between molecules and atoms
- collision between subatomic particles.

Characteristics of elastic collision:

- Momentum is conserved
- Total energy is conserved
- K. E. is conserved
- Forces involved during collision are conservative forces

2. Inelastic collision:

Inelastic collision is one in which the momentum is conserved, but KE is not conserved.

Example.

- Mud was thrown on a wall
- Any collision between macroscopic bodies in everyday life.

Characteristics of inelastic collision:

- Momentum is conserved
- Total energy is conserved
- K.E. is not conserved
- Forces involved are not conservative
- Part or whole of the KE is converted into other forms of energy like heat, sound, light etc.

2. Collisions in one Dimension:

If the initial velocities and final velocities of both the bodies are along the straight line, then it is called one-dimensional motion.

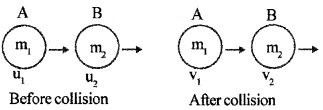

Consider two bodies of masses m_{1} and m_{2} moving with velocities u_{1} and u_{2} in the same direction and in the same line. If u_{1} > u_{2} they will collide. After collision let v_{1} and v_{2} be their velocities.

By conservation of linear momentum.

m_{1}u_{1} + m_{2}u_{2} = m_{1}v_{1} + m_{2}v_{2} ______(1)

m_{1}u_{1} – m_{2}u_{2} = m_{1}v_{1} – m_{2}v_{2} ______(2)

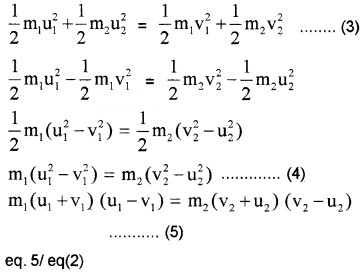

This is an elastic collision, hence K.E. is conserved.

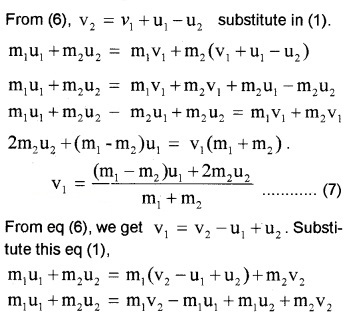

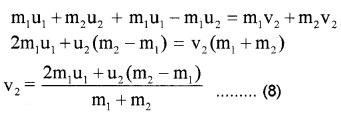

To find v_{1} and v_{2}:

__Discussion__

__Case -1__ Mass of two bodies are equal

(i.e. m_{1} = m_{2} = m). Substitute these values in (7) and (8), we have

ie. bodies exchange their velocities.

__Case – 2__ (If u_{2} =0 and m_{2} >> m_{1} ie; m_{1} – m_{2} ≈ -m_{2}, m_{1} + m_{2} ≈ -m_{2})

The second body remains at rest while the first body rebounds with the same velocity.

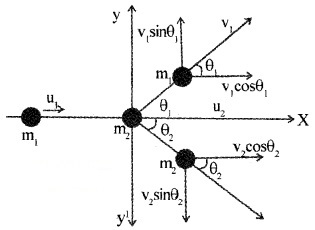

Collisions in Two Dimensions:

Consider two bodies of masses m_{1} and m_{2} moving with velocities u_{1} and u_{2} along parallel lines. If u_{1} > u_{2} they will collide. Let v_{1} and v_{2} be their velocities after collision along directions θ_{1} and θ_{2}. v_{1} and v_{2} can be resolved in to v_{1} cosθ_{1}, v_{2}cosθ_{2} parallel to x axis and v_{1} sinθ_{1} and v_{2}sinθ_{2} parallel to y axis.

By conservation of momentum parallel to X-axis,

m_{1}u_{1} + m_{2}u_{2} = m_{1}v_{1} cosθ_{1} + m_{2}v_{2} cosθ_{2}

By conservation of momentum parallel to y-axis.

m_{1}v_{1}sinθ_{1} + m_{2}v_{2} sinθ_{2} = 0 + 0 = 0

By conservation of energy
