## Kerala Plus One Physics Notes Chapter 4 Motion in a Plane

Summary

Introduction

In this chapter, we will study, about vector, its ’ addition, substraction and multiplication We then discuss motion of an object in a plane. We shall also discuss uniform circular motion in detail.

Scalars And Vectors

a. Scalars:

A quantity which has only magnitude and no direction is called a scalar quantity.

Eg: length; volume, mass, time, work etc.

b. Vectors:

(i) The need for vectors:

In one dimensional motion, there are only two possible directions. But in two or three dimensional motion, infinite number of directions are possible. Hence quantities like displacement, velocity, force etc. cannot be represented by magnitude alone: Therefore in order to describe such quantities, not only magnitude but direction also is essential.

(ii) Vector:

A physical quantity which has both magnitude and direction is called a vector quantity.

Eg: Displacement, Velocity, Acceleration, Force, momentum.

1. Position and Displacement Vectors:

Position vector:

Consider the motion of an object in a plane. Let P be the position of object at time tw.r.t.origin given O.

A vector representing the position of an object P with respect to an origin O is called position vector \(\overrightarrow{\mathrm{OP}}\) of the object. This position vector may be represented

by an arrow with tail at O and head at P.

The length of the line gives the magnitude of the vector and arrow head (tip) indicates its direction in space. The magnitude of OP is represented by |\(\overrightarrow{\mathrm{OP}}\)|.

Displacement vector:

Consider the motion of an object in a plane. Let P be the position of a moving object at a time t and p^{1} that at a later time t^{1}. \(\overrightarrow{\mathrm{OP}}\) and \(\overrightarrow{\mathrm{OP}^{1}}\) are the position vectors at time t and t^{1} respectively. So the vector \(\overrightarrow{\mathrm{PP}^{1}}\) is called displacement vector corresponding to the motion in the time interval (t – t^{1}).

2. Equality of vectors:

Two vectors are said to be equal if they have the same magnitude and direction.

The above figure shows two vectors \(\vec{A}\) and \(\vec{B}\) having the same magnitude and direction.

∴ \(\vec{A}\) = \(\vec{B}\).

Question 1.

Observe the following figures (a) and (b) and find which pair does represents equal vectors?

Answer:

Figure a represent that A and B are equal vectors. Two vectors A^{1} and B^{1} are unequal, because they were in different directions.

Multiplication Of Vectors By Real Numbers

Multiplying a vector \(\vec{A}\) with a positive number I gives a vector whose magnitude is changed by the factor λ.

The direction λ\(\vec{A}\) is the same as that of \(\vec{A}\).

Examples:

A vector \(\vec{A}\) and the resultant vector after multiplying \(\vec{A}\) by a positive number 2.

A vector A and resultant vector after multiplying it by a negative number-1 and -1.5.

Addition And Subtraction Of Vectors – Graphical Method

Vectors representing physical quantities of the __same dimensions__ can be added or subtracted. The sum of two or more vectors is known as their resultant.

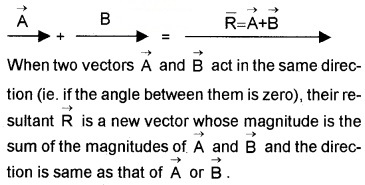

1. When two vectors are acting in the same direction:

2. When two vectors act in opposite direction:

In this case, the angle between the vectors is 180°.

The resultant of the two vectors is a new vector whose magnitude is the difference between the magnitudes of the two vectors and whose direction is the same as the direction of the bigger vector.

3. When two vectors are inclined to each other:

The sum of two vectors inclined at an angle q can be obtained either by

- the law of triangle of vectors
- the parallelogram law of vectors

(i) Triangle method:

This law states that if two vectors can be represented in magnitude and direction by the two sides of a triangle taken in the same order, then the resultant is represented in magnitude and direction by the third side of the triangle taken in the reverse order.

__Explanation__

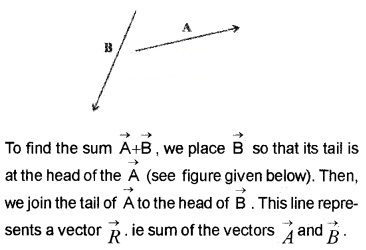

Consider two vectors \(\vec{A}\) and \(\vec{B}\) as shown in figure.

(ii) Parallelogram law of vector addition:

This law states that if two vectors acting at a point can be represented in magnitude and direction by the two adjacent sides of a parallelogram, then the diagonal of the parallelogram through that point represents the resultant vector.

__Explanation__

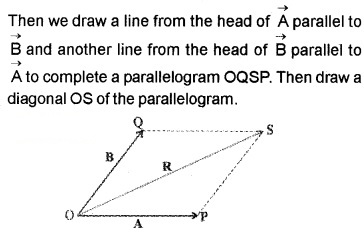

Consider two vectors \(\vec{A}\) and \(\vec{B}\) as shown in figure.

To find \(\vec{A}\) + \(\vec{B}\), we bring theirtails to a common origin Q as shown below.

The diagonal of parallelogram OQSP, gives the resultantof (\(\vec{R}\) = \(\vec{A}\) + \(\vec{B}\)) of two vectors \(\vec{A}\) and \(\vec{B}\).

Note: Triangle and parallelogram law of vector addition gives the same result, ie. the two methods are equivalent.

4. Substraction of vectors:

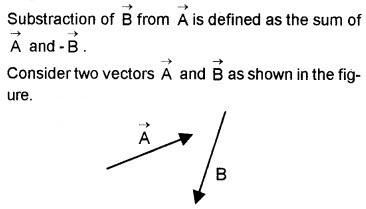

To substract \(\vec{B}\) from \(\vec{A}\), reverse the direction of \(\vec{B}\).

Then add –\(\vec{B}\) with \(\vec{A}\) using parallelogram law or tri¬angle law.

The resultant of \(\vec{A}\) and \(\vec{B}\) is given by \(\vec{R}\).

Null vector or zero vector:

A vector having zero magnitude is called a zero vector or null vector. Null vector is represented by \(\vec{O}\). Since the magnitude is zero, we don’t have to specify its direction.

Properties of null vector:

Question 2.

Explain a zero vector using an example.

Answer:

Suppose that an object which is at P at time t, moves to p^{1} and then comes back to P. In this case displacement is a null vector.

Resolution Of Vectors Unit Vectors

A vector divided by its magnitude is called a unit vector along the direction of that vector. A unit vector in the direction of \(\vec{A}\) is written as \(\hat{A}\).

Orthogonal unit vectors:

In the Cartesian coordinate system, the unit vectors along the X, Y and Z directions are represented by \(\hat{i}\), \(\hat{j}\) and \(\hat{k}\) respectively and are known as orthogonal unit vectors.

For unit vectors

Resolution of vector into rectangular components:

The components of a vector in two mutually perpendicular directions are called its rectangular components.

__Explanation__

Consider a vector \(\overrightarrow{\mathrm{A}}\) that lies in x-y plane as shown in figure. To resolve \(\overrightarrow{\mathrm{A}}\), draw lines from the head of \(\overrightarrow{\mathrm{A}}\) perpendicularto the coordinate axes as shown below.

The quantities A_{x} and A_{y} are called x and y components of the vector \(\overrightarrow{\mathrm{A}}\). Hence the vector \(\overrightarrow{\mathrm{A}}\) can be written in terms of rectangular components as

Magnitude of \(\overrightarrow{\mathrm{A}}\):

From the figure, the magnitude of \(\overrightarrow{\mathrm{A}}\) can be written as,

Question 3.

A vector \(\overrightarrow{\mathrm{A}}\) in xyz plane is given below. A_{x}, A_{y} and A_{z} are the perpendicular components in x,y and z directions respectively.

- Write \(\overrightarrow{\mathrm{A}}\) in terms of rectangular components.
- Write the magnitude of \(\overrightarrow{\mathrm{A}}\).

Answer:

The magnitude of vector \(\overrightarrow{\mathrm{A}}\) is

Vector Addition – Analytical Method

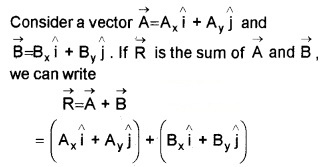

The graphical method of adding vectors helps us in visualizing the vectors and the resultant vector. But this method has limited accuracy and sometimes tedious. Hence we use the analytical method to add vectors.

Explanation

The vectors obey commutative and associative laws. Hence

Question 4.

Find the magnitude and direction of the resultant of two vectors \(\overrightarrow{\mathrm{A}}\) and \(\overrightarrow{\mathrm{A}}\) in terms of their magnitudes and angle between them.

Answer:

Consider two vectors \(\vec{A}(=\overrightarrow{O P}) \text { and } \vec{B}(=\overrightarrow{O Q})\) making an angle q. Using the parallelogram method of

vectors, the resultant vector \(\overrightarrow{\mathrm{R}}\) can be written as,

SN is normal to OP and PM is normal to OS. From the geometry of the figure

OS^{2} = ON^{2} + SN^{2}

but ON = OP + PN

ie. OS^{2} = (OP+PN)^{2} + SN^{2} ______(1)

From the triangle SPN, we get

PN = Bcosq and SN = Bsinq

Substituting these values in eq.(1), we get

OS^{2} = (OP + Bcosq)^{2} + (Bsinq)^{2}

But OS = R and OP = A

R^{2} = (A + Bcosq)^{2} + B^{2}sin^{2}q

= A^{2} + 2ABcosq + B^{2}cos^{2}q + B^{2}sin^{2}q

R^{2} = A^{2} + 2 ABcosq + B^{2}

The resultant vector \(\overrightarrow{\mathrm{R}}\) make an angle a with \overrightarrow{\mathrm{A}}. From the right angled triangle OSN,

But SN = Bsinq PN = Bcosq

Motion In A Plane

1. Position vector and displacement vector Position vector:

Consider a small body located at P with reference to the origin O. The position vector of the point ‘P’

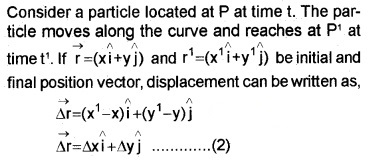

Displacement vector

where Dx = x^{1} – x^{1}, Dy = y^{1} – y

Velocity:

If Dt is the time taken to reach from P to P^{1}

The average velocity, \(\overrightarrow{\mathrm{v}}_{\mathrm{av}}=\frac{\overrightarrow{\Delta r}}{\Delta \mathrm{t}}\) ____(3)

Substitute eq.(2) in eq.(3), we get

The direction of average velocity is the same as that of \(\overrightarrow{\Delta r}\).

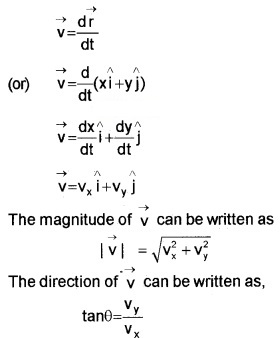

The instantaneous velocity can be written as

Acceleration:

If the velocity of an object changes from \(\overrightarrow{\mathrm{v}} \text { to } \overrightarrow{\mathrm{v}^{1}}\) in time Dt, then its average acceleration is given by

Instantaneous acceleration:

The acceleration at any instant is called instantaneous acceleration. When Dt goes to zero, the average acceleration becomes instantaneous acceleration.

ie. Instantaneous acceleration

Motion In A Plane With Constant Acceleration

Consider an object moving in XY plane with a constant acceleration ‘a’. Let \(\vec{u}\) be the initial velocity at t=0 and \(\vec{v}\) be the final velocity at time t.

Then by definition acceleration

In terms of components

v_{x} = u_{x} + a_{x}t

v_{y} = u_{y} + a_{y}t

__Displacement in a plane__

If \(\overrightarrow{\mathrm{r}_{0}}\) and \(\vec{r}\) be position vectors of particle at t = 0 and time t respectively, then

displacement = \(\vec{r}-\vec{r}_{0}\) _______(1)

For uniformly accelerated motion, displacement,

In terms of components

x = x_{0} + u_{x}t + 1/2 a_{x}t^{2}

y = y_{0} + u_{y}t + 1/2 a_{y}t^{2}

The eq.(2) shows that, the above motion in xy plane can be treated as two separate one-dimensional motions along two perpendicular directions.

Relative Velocity In Two Dimensions

Consider two bodies A and B moving along a plane with velocities \(\overrightarrow{\mathrm{V}}_{\mathrm{A}}\) and \(\overrightarrow{\mathrm{V}}_{\mathrm{B}}\). Then the velocity of A relative to that of B is,

Similarly velocity of B relative to that of A

Projectile Motion

Projectile:

A body is projected into air and is allowed to move under the influence of gravity is called a projectile.

Consider a body which is projected into air with a velocity u at an angle q. The initial velocity ‘u’ can be divided into two components ucosq along horizontal direction and using along vertical direction.

1. Time of flight:

The time taken by the projectile to cover the horizontal range is called the time of flight. Time of flight of projectile is decided by usinq. The time of flight can be found using the formula

s = ut + 1/2 at^{2}

Taking vertical displacement s = 0, a = -g and initial vertical velocity = u sin q, we get

0 = usinqt – 1/2gt^{2}

1/2 gt^{2} = usinqt

2. Vertical height:

Vertical height of body is decided by vertical component of velocity (usinq). The vertical displacement of projectile can be found using the formula v^{2} = u^{2} + 2as

When we substitute v=0, a = -g, s = H and u = usinq, we get

0 = (usinq)^{2} + 2 – g × H

2gH = u^{2}sin^{2}q

3. Horizontal Range:

If we neglect the air resistance, the horizontal velocity (ucosq) of projectile will be constant.

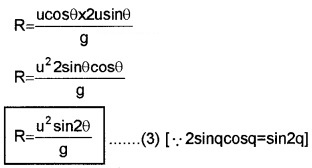

Hence the horizontal distance (R) can be found as

R = horizontal velocity × time of flight

The eq.(3) shows that, R is maximum when sin2q is maximum, ie. When q_{0} = 45°.

The maximum horizontal range

__Equation for path of projectile__

Question 5.

What is the shape of path followed by the projectile? Show that the path of projectile is parabola. The vertical displacement of projectile at any time t, can be found using the formula.

Answer:

S = ut+ 1/2at^{2}

y = usinqt – 1/2gt^{2}

But we know horizontal displacement, x = ucosq × t

In this equation g, q and u are constants. Hence eq.(4) can be written in the form

y = ax + bx^{2}

where a and b are constants. This is the equation of the parabola, ie. the path of the projectile is a parabola.

Uniform Circular Motion

The motion of an object along the circumference of a circle is called circular motion.

Uniform circular motion:

When an object follows a circular path at a constant speed, the motion is called uniform circular motion.

Period:

The time taken by the object to complete one full revolution is called the period.

Frequency:

The number of revolutions completed per second is called the frequency u of the circular motion.

If the period of a circular motion isT, its frequency

Angular Displacement (Dq):

The angle Dq in radians swept out by the radius vector in a given interval of time is called the angular displacement of the object.

Angular velocity:

The rate of change of angular displacement is called the angular velocity.

If T is the period of an object, then its radius vector sweeps out an angle of 2p radian.

Therefore in one second it sweeps out an angle \(\frac{2 \pi}{T}\).

∴ Angular velocity of the object

Expression for velocity and acceleration in uniform circular motion:

The direction of velocity is in the direction of tangent at that point. The change in velocity vectors \((\overrightarrow{\Delta v})\) is obtained by triangle law of vector as shown in figure (b).

a. Speed and angular speed in uniform circular motion:

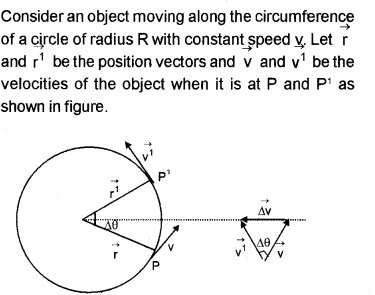

Let the Dq be the angle constructed by the body during the time interval ∆t. The angular velocity can be written as

If the distance travelled by the object during the time Dt is Dr (ie. PP^{1} = Ds) then speed

But Ds = RDq

where R = \(|\vec{r}|=|\overrightarrow{r^{\prime}}|\)

Substituting Dr = RDq in eq.(1)

we get

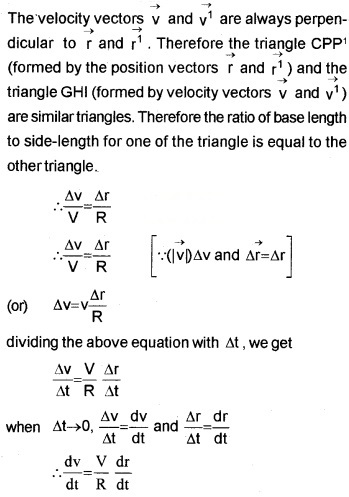

b. Acceleration in uniform circular motion:

The direction of this acceleration should be in the direction of \(\overrightarrow{\Delta V}\). Fig (b) shows that \(\overrightarrow{\Delta V}\) is towards the centre of the circular path. Hence the acceleration is directed towards the centre of the circle and is called centripetal acceleration.

The force which produces this centripetal acceleration is called centripetal force.

Centripetal force can be written as

F = ma_{c}

But ω = \(\frac{V}{R}\). Hence we get K
