Bus Topology Advantages And Disadvantages: Bus topology is the simple form of network setup that involves computers and network devices including servers connected to a single cable. This central cable of the network is known as the bus which is considered the backbone of the system because it has all the control. The devices communicate with each other through this bus cable. A signal generated from the source travels to all workstations connected to the central cable. Only the intended recipient with a specific IP address receives the signal. Bus topology creates a simple localized area network that can be very effective for small area networks. Peripherals and computers can be added to this network in a linear fashion with a flexible length cable connection that is easier to be implemented.
Students can also find more Advantages and Disadvantages articles on events, persons, sports, technology, and many more.
What is Bus Topology? Advantages and Disadvantages of Bus Topology

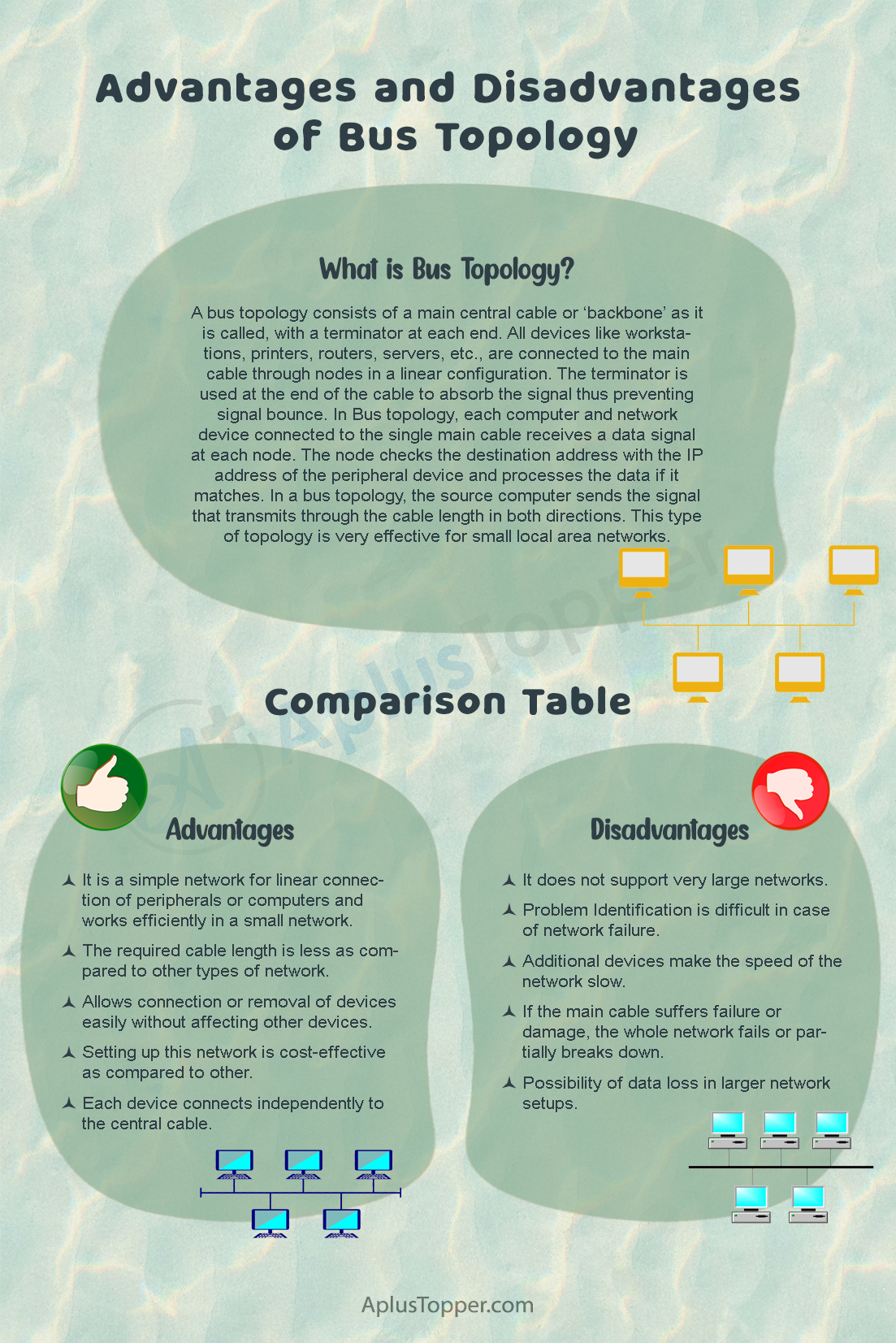

A bus topology consists of a main central cable or ‘backbone’ as it is called, with a terminator at each end. All devices like workstations, printers, routers, servers, etc., are connected to the main cable through nodes in a linear configuration. The terminator is used at the end of the cable to absorb the signal thus preventing signal bounce. In Bus topology, each computer and network device connected to the single main cable receives a data signal at each node. The node checks the destination address with the IP address of the peripheral device and processes the data if it matches. In a bus topology, the source computer sends the signal that transmits through the cable length in both directions. This type of topology is very effective for small local area networks.

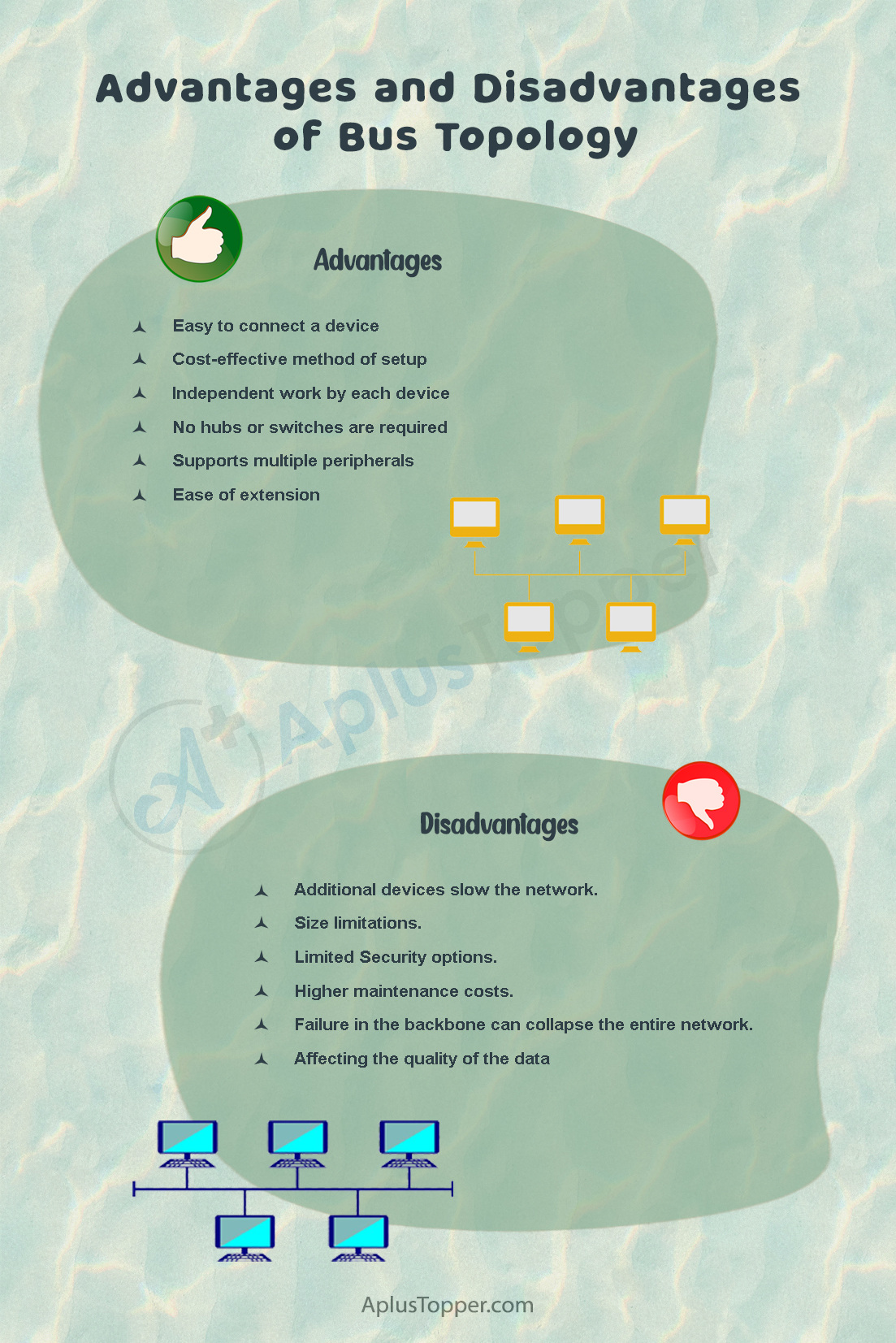

- Advantages of Bus Topology
- Disadvantages of Bus Topology
- Comparison Table for Advantages and Disadvantages of Bus Topology
- FAQ’s on Bus Topology Advantages And Disadvantages
- Easy to connect a device: It is easy to connect a computer or other device to the network. The new device connected gets access to the network immediately. It is the best option for a temporary network connection that can be set up quickly. Many users can have mutual access to a device that is added to the network through bus topology.
- Cost-effective method of setup: Bus topology involves much less cost for implementation as compared to other types of hybrid networks. The reason is that the required cable length is less than the other network options. In the case of a small network, bus topology is the easiest and affordable solution.
- Independent work by each device: The linear nature of the network ensures that each unit connects independently to the central cable and gets access to data till they remain connected. The problem in any one device does not affect the performance of others. This makes the communication effective and uninterrupted.
- No hubs or switches are required: the simple structure creates a localized network that allows easy data flow to each device that is connected to the central file server. In absence of hubs and switches, any potential failure can be managed effectively in this setup.
- Supports multiple peripherals: Various devices like routers, printers, and other peripherals connected to this network can receive a direct command from the user, thus increasing the production speed. This helps to make the workflow more productive over time.
- Ease of extension: The size of the bus topology network can be extended without much effort. Additional peripherals or computers can be added to the network easily by joining a cable with a connector. It provides a simplified solution to add devices that allow more people to work quickly together. Such devices can be connected or removed from the network without disturbing the function of other computers.
Additional devices slow the network: The bus topology allows every computer and peripheral to connect through a single central cable. So the addition of more devices tends to slow down the entire network. With more devices, there is a risk that collisions will occur within the network, and communication is affected. Speed issues may occur with a larger network using bus topology.
Size limitations: A bus topology generally has a limited length of cable, which causes a limitation to the number of nodes to be built on the network and restricts the connection of more computers to the network after a certain limit.
Limited Security options: In this topology, any computer connected to the central cable of the network will be aware of the data transmissions to the other computers from the source device. Each terminal has full access to every other terminal through the central bus. This makes it difficult to install security options on such a setup.
Higher maintenance costs: Although the installation of bus topology is cheaper, the costs of maintaining this type of network increases in the long run. This topology may not be an ideal choice when people are looking for growth and expansion of the network because it is not much scalable and involves extra cost over time.
Failure in the backbone can collapse the entire network: A failure in the central backbone cable may collapse the total network system because all computers are connected to the main cable. It becomes difficult to establish communication with the devices until the fault is repaired or the backbone cable is replaced. A break at any point in the central cable will cause computers to lose connectivity with devices on the other side of the network. This implies the vulnerability of this system with dependency on a single main cable.
Affecting the quality of the data: In large setups of bus topology, data quality issues can be experienced. Increasing the number of nodes on the network can have adverse impact on the quality of communication that occurs through this network and may result in data loss. This justifies the reason why the size of these networks is generally limited. It is also difficult to identify and troubleshoot issues of individual workstations.
|It is a simple network for linear connection of peripherals or computers and works efficiently in a small network.||It does not support very large networks.|
|The required cable length is less as compared to other types of network||Problem Identification is difficult in case of network failure.|
|Allows connection or removal of devices easily without affecting other devices.||Additional devices make the speed of the network slow.|
|Setting up this network is cost-effective as compared to other||If the main cable suffers failure or damage, the whole network fails or partially breaks down|
|Each device connects independently to the central cable.||Possibility of data loss in larger network setups.|
What does ‘bus’ stand for in Bus Topology?
The ‘bus’ refers to the main central cable to which all the computers and other devices are connected.
Why is a larger network not efficient with bus topology?
The speed of data communication in the bus network slows down with the increase in the number of devices connected to it, thereby reducing the efficiency of the system.
Why is the bus topology advantageous over star topology?
Bus topology requires less cable length as compared to star topology hence set up cost is less.
