## Selina Concise Mathematics Class 10 ICSE Solutions Section and Mid-Point Formula

**Selina Publishers Concise Mathematics Class 10 ICSE Solutions Chapter 13 Section and Mid-Point Formula**

### Section and Mid-Point Formula Exercise 13A – Selina Concise Mathematics Class 10 ICSE Solutions

**Question 1.**

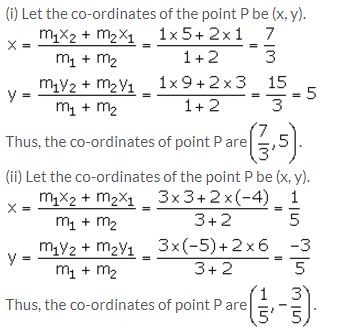

Calculate the co-ordinates of the point P which divides the line segment joining:

(i) A (1, 3) and B (5, 9) in the ratio 1: 2.

(ii) A (-4, 6) and B (3, -5) in the ratio 3: 2.

**Solution:**

**Question 2.**

In what ratio is the line joining (2, -3) and (5, 6) divided by the x-axis.

**Solution:**

Let the line joining points A (2, -3) and B (5, 6) be divided by point P (x, 0) in the ratio k: 1.

Thus, the required ratio is 1: 2.

**Question 3.**

In what ratio is the line joining (2, -4) and (-3, 6) divided by the y-axis.

**Solution:**

Let the line joining points A (2, -4) and B (-3, 6) be divided by point P (0, y) in the ratio k: 1.

Thus, the required ratio is 2: 3.

**Question 4.**

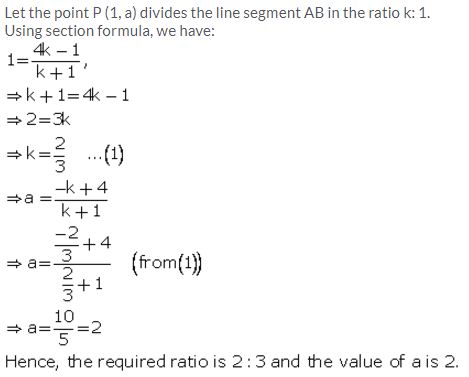

In what ratio does the point (1, a) divided the join of (-1, 4) and (4, -1)? Also, find the value of a.

**Solution:**

**Question 5.**

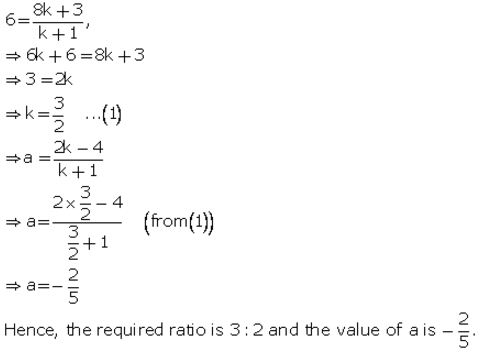

In what ratio does the point (a, 6) divide the join of (-4, 3) and (2, 8)? Also, find the value of a.

**Solution:**

Let the point P (a, 6) divides the line segment joining A (-4, 3) and B (2, 8) in the ratio k: 1.

Using section formula, we have:

**Question 6.**

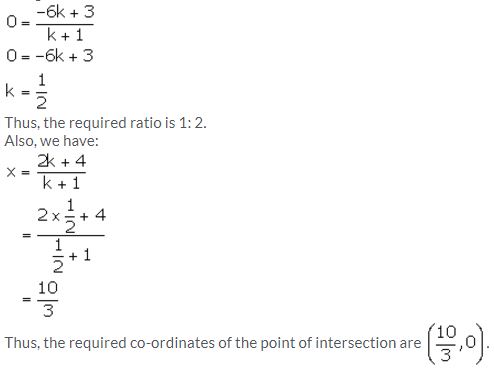

In what ratio is the join of (4, 3) and (2, -6) divided by the x-axis. Also, find the co-ordinates of the point of intersection.

**Solution:**

Let the point P (x, 0) on x-axis divides the line segment joining A (4, 3) and B (2, -6) in the ratio k: 1.

Using section formula, we have:

**Question 7.**

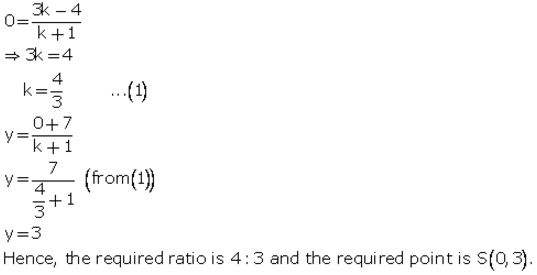

Find the ratio in which the join of (-4, 7) and (3, 0) is divided by the y-axis. Also, find the coordinates of the point of intersection.

**Solution:**

Let S (0, y) be the point on y-axis which divides the line segment PQ in the ratio k: 1.

Using section formula, we have:

**Question 8.**

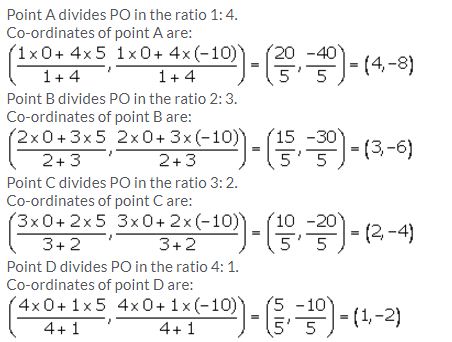

Points A, B, C and D divide the line segment joining the point (5, -10) and the origin in five equal parts. Find the co-ordinates of A, B, C and D.

**Solution:**

**Question 9.**

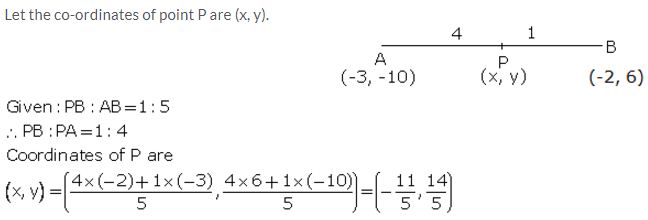

The line joining the points A (-3, -10) and B (-2, 6) is divided by the point P such that Find the co-ordinates of P.

**Solution:**

**Question 10.**

P is a point on the line joining A (4, 3) and B (-2, 6) such that 5AP = 2BP. Find the co-ordinates of P.

**Solution:**

**Question 11.**

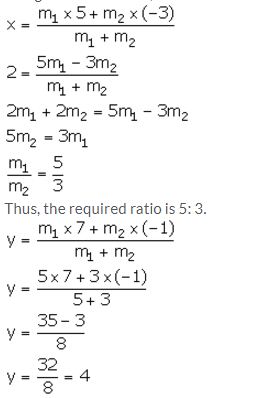

Calculate the ratio in which the line joining the points (-3, -1) and (5, 7) is divided by the line x = 2. Also, find the co-ordinates of the point of intersection.

**Solution:**

The co-ordinates of every point on the line x = 2 will be of the type (2, y).

Using section formula, we have:

Thus, the required co-ordinates of the point of intersection are (2, 4).

**Question 12.**

Calculate the ratio in which the line joining A (6, 5) and B (4, -3) is divided by the line y = 2.

**Solution:**

The co-ordinates of every point on the line y = 2 will be of the type (x, 2).

Using section formula, we have:

**Question 13.**

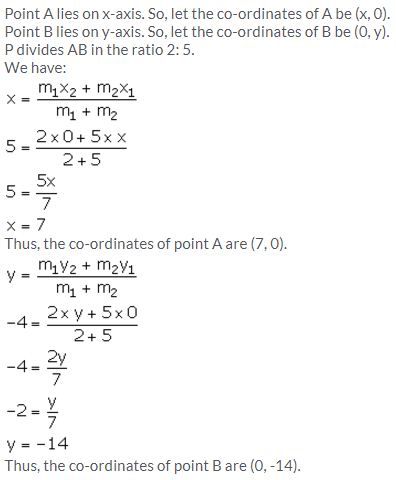

The point P (5, -4) divides the line segment AB, as shown in the figure, in the ratio 2: 5. Find the co-ordinates of points A and B.

**Solution:**

**Question 14.**

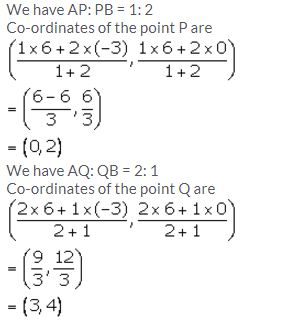

Find the co-ordinates of the points of trisection of the line joining the points (-3, 0) and (6, 6).

**Solution:**

Let P and Q be the point of trisection of the line segment joining the points A (-3, 0) and B (6, 6).

So, AP = PQ = QB

**Question 15.**

Show that the line segment joining the points (-5, 8) and (10, -4) is trisected by the co-ordinate axes.

**Solution:**

Let P and Q be the point of trisection of the line segment joining the points A (-5, 8) and B (10, -4).

So, AP = PQ = QB

So, point Q lies on the x-axis.

Hence, the line segment joining the given points A and B is trisected by the co-ordinate axes.

**Question 16.**

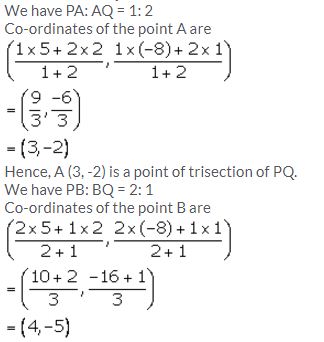

Show that A (3, -2) is a point of trisection of the line-segment joining the points (2, 1) and (5, -8). Also, find the co-ordinates of the other point of trisection.

**Solution:**

Let A and B be the point of trisection of the line segment joining the points P (2, 1) and Q (5, -8).

So, PA = AB = BQ

**Question 17.**

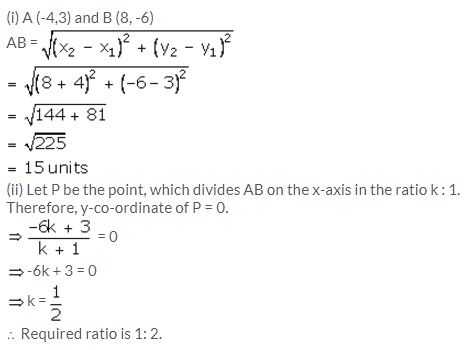

If A = (-4, 3) and B = (8, -6)

(i) Find the length of AB.

(ii) In what ratio is the line joining A and B, divided by the x-axis?

**Solution:**

**Question 18.**

The line segment joining the points M (5, 7) and N (-3, 2) is intersected by the y-axis at point L. Write down the abscissa of L. Hence, find the ratio in which L divides MN. Also, find the co-ordinates of L.

**Solution:**

Since, point L lies on y-axis, its abscissa is 0.

Let the co-ordinates of point L be (0, y). Let L divides MN in the ratio k: 1.

**Question 19.**

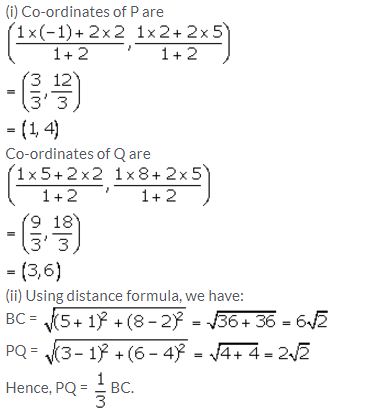

A (2, 5), B (-1, 2) and C (5, 8) are the co-ordinates of the vertices of the triangle ABC. Points P and Q lie on AB and AC respectively, such that AP: PB = AQ: QC = 1: 2.

(i) Calculate the co-ordinates of P and Q.

(ii) Show that PQ = 1/3 BC.

**Solution:**

**Question 20.**

A (-3, 4), B (3, -1) and C (-2, 4) are the vertices of a triangle ABC. Find the length of line segment AP, where point P lies inside BC, such that BP: PC = 2: 3.

**Solution:**

**Question 21.**

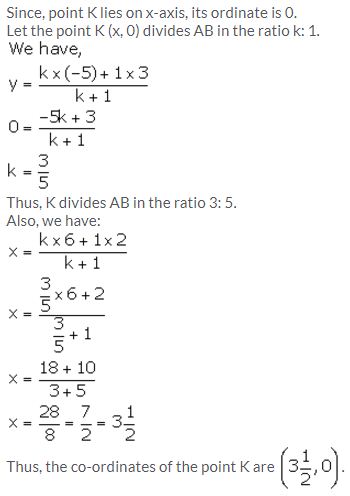

The line segment joining A (2, 3) and B (6, -5) is intercepted by x-axis at the point K. Write down the ordinate of the point K. Hence, find the ratio in which K divides AB. Also, find the co-ordinates of the point K.

**Solution:**

**Question 22.**

The line segment joining A (4, 7) and B (-6, -2) is intercepted by the y-axis at the point K. Write down the abscissa of the point K. Hence, find the ratio in which K divides AB. Also, find the co-ordinates of the point K.

**Solution:**

**Question 23.**

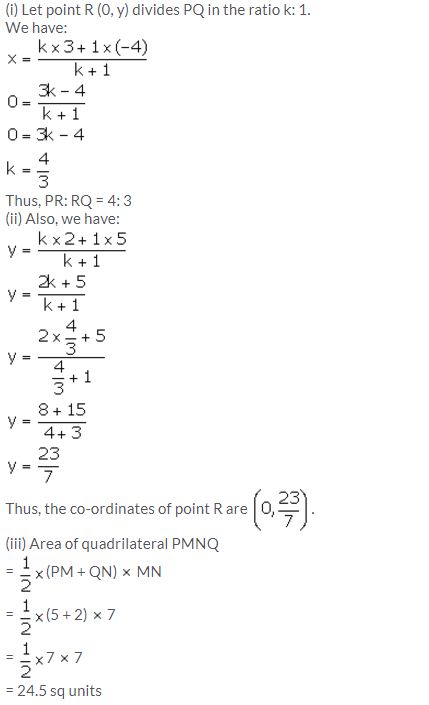

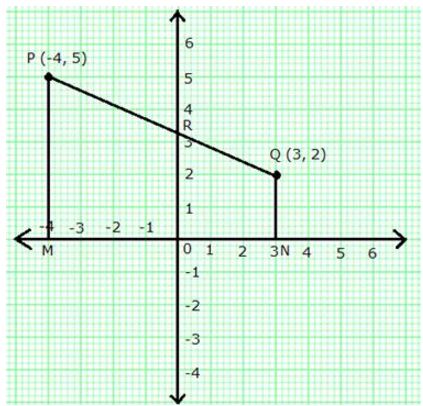

The line joining P (-4, 5) and Q (3, 2) intersects the y-axis at point R. PM and QN are perpendiculars from P and Q on the x-axis. Find:

(i) the ratio PR: RQ.

(ii) the co-ordinates of R.

(iii) the area of the quadrilateral PMNQ.

**Solution:**

**Question 24.**

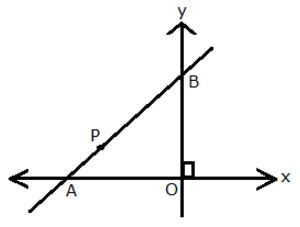

In the given figure, line APB meets the x-axis at point A and y-axis at point B. P is the point (-4, 2) and AP: PB = 1: 2. Find the co-ordinates of A and B.

**Solution:**

Given, A lies on x-axis and B lies on y-axis.

Let the co-ordinates of A and B be (x, 0) and (0, y) respectively.

Given, P is the point (-4, 2) and AP: PB = 1: 2.

Using section formula, we have:

Thus, the co-ordinates of points A and B are (-6, 0) and (0, 6) respectively.

**Question 25.**

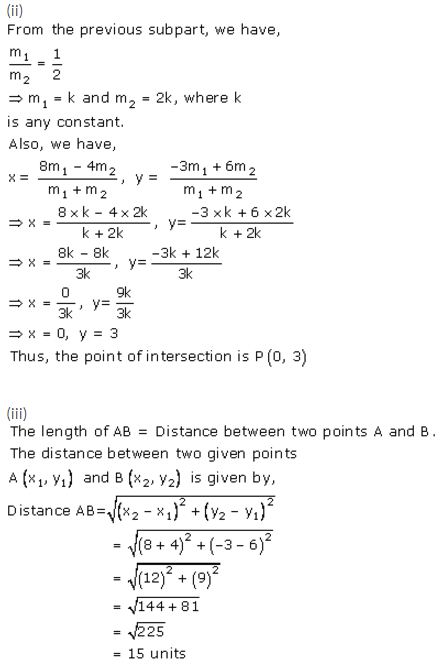

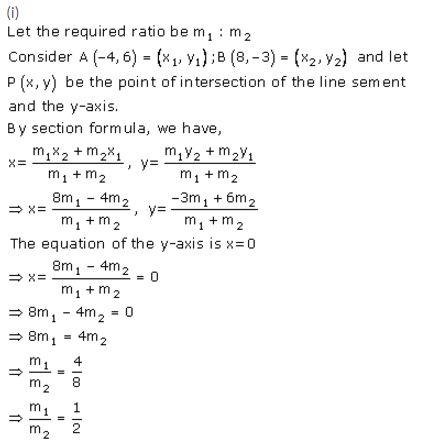

Given a line segment AB joining the points A(-4, 6) and B(8, -3). Find:

(i) the ratio in which AB is divided by the y-axis

(ii) find the coordinates of the point of intersection

(iii) the length of AB

**Solution:**

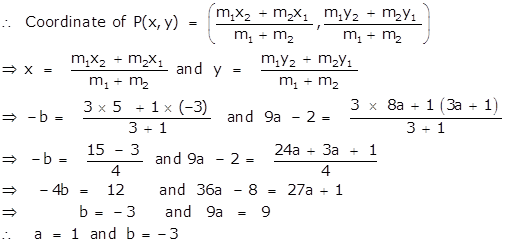

**Question 26. **If P(-b, 9a – 2) divides the line segment joining the points A(-3, 3a + 1) and B(5, 8a) in the ratio 3: 1, find the values of a and b.

**Take (x**

**Solution:**_{1}, y

_{1}) = (-3, 3a + 1) ; (x

_{2}, y

_{2}) = B(5, 8a) and

(x, y) = (-b, 9a – 2)

Here m

_{1}= 3 and m

_{2}=1

### Section and Mid-Point Formula Exercise 13B – Selina Concise Mathematics Class 10 ICSE Solutions

**Question 1.**

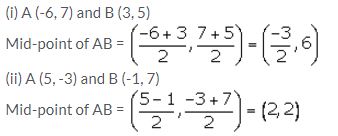

Find the mid-point of the line segment joining the points:

(i) (-6, 7) and (3, 5)

(ii) (5, -3) and (-1, 7)

**Solution:**

**Question 2.**

Points A and B have co-ordinates (3, 5) and (x, y) respectively. The mid-point of AB is (2, 3). Find the values of x and y.

**Solution:**

**Question 3.**

A (5, 3), B (-1, 1) and C (7, -3) are the vertices of triangle ABC. If L is the mid-point of AB and M is the mid-point of AC, show that LM = 1/2 BC.

**Solution:**

**Question 4.**

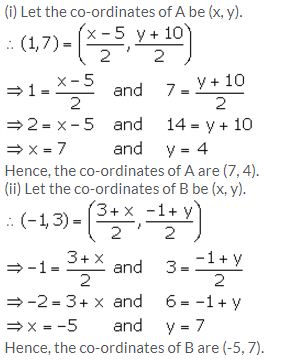

Given M is the mid-point of AB, find the co-ordinates of:

(i) A; if M = (1, 7) and B = (-5, 10)

(ii) B; if A = (3, -1) and M = (-1, 3).

**Solution:**

**Question 5.**

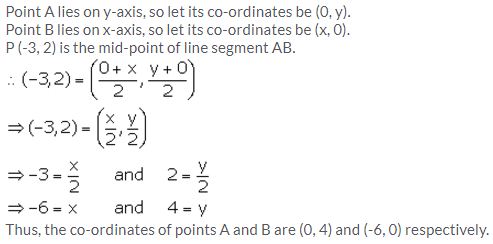

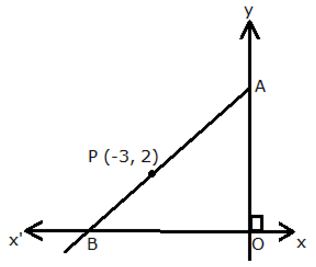

P (-3, 2) is the mid-point of line segment AB as shown in the given figure. Find the co-ordinates of points A and B.

**Solution:**

**Question 6.**

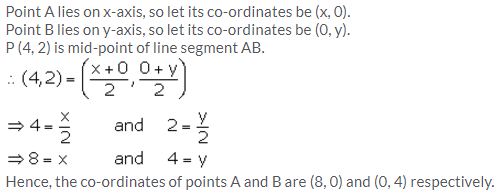

In the given figure, P (4, 2) is mid-point of line segment AB. Find the co-ordinates of A and B.

**Solution:**

**Question 7.**

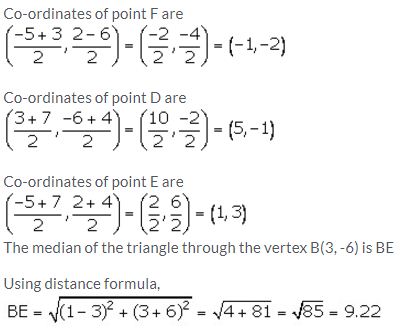

(-5, 2), (3, -6) and (7, 4) are the vertices of a triangle. Find the lengths of its median through the vertex (3, -6)

**Solution:**

Let A (-5, 2), B (3, -6) and C (7, 4) be the vertices of the given triangle.

Let AD be the median through A, BE be the median through B and CF be the median through C.

We know that median of a triangle bisects the opposite side.

**Question 8.**

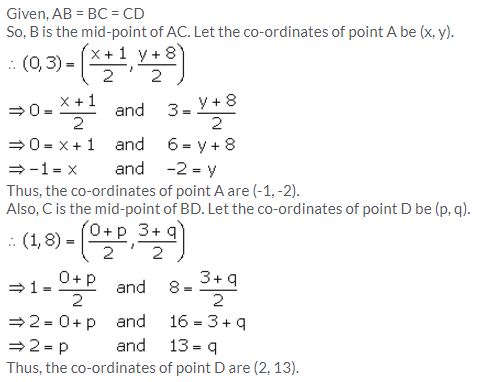

Given a line ABCD in which AB = BC = CD, B = (0, 3) and C = (1, 8). Find the co-ordinates of A and D.

**Solution:**

**Question 9.**

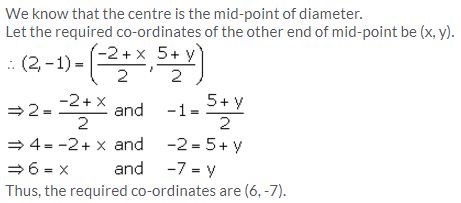

One end of the diameter of a circle is (-2, 5). Find the co-ordinates of the other end of it, if the centre of the circle is (2, -1).

**Solution:**

**Question 10.**

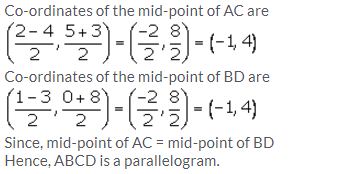

A (2, 5), B (1, 0), C (-4, 3) and D (-3, 8) are the vertices of a quadrilateral ABCD. Find the co-ordinates of the mid-points of AC and BD.

Give a special name to the quadrilateral.

**Solution:**

**Question 11.**

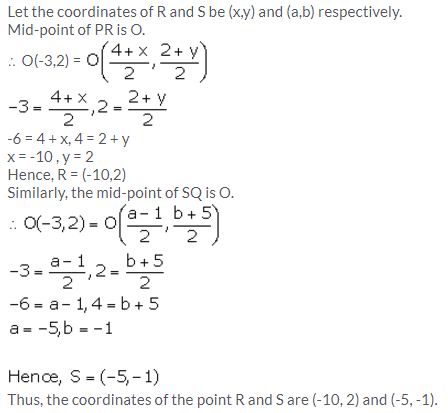

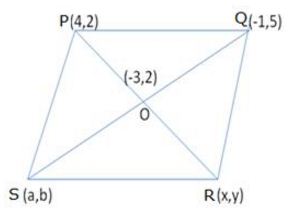

P (4, 2) and Q (-1, 5) are the vertices of a parallelogram PQRS and (-3, 2) are the co-ordinates of the points of intersection of its diagonals. Find the coordinates of R and S.

**Solution:**

**Question 12.**

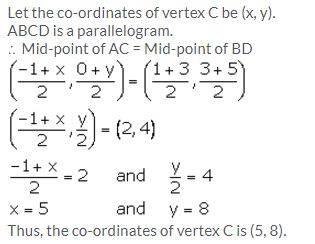

A (-1, 0), B (1, 3) and D (3, 5) are the vertices of a parallelogram ABCD. Find the co-ordinates of vertex C.

**Solution:**

**Question 13.**

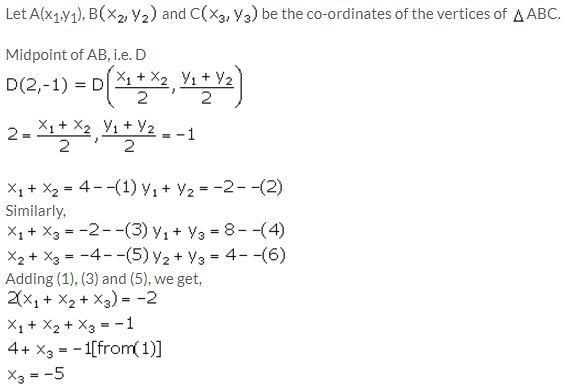

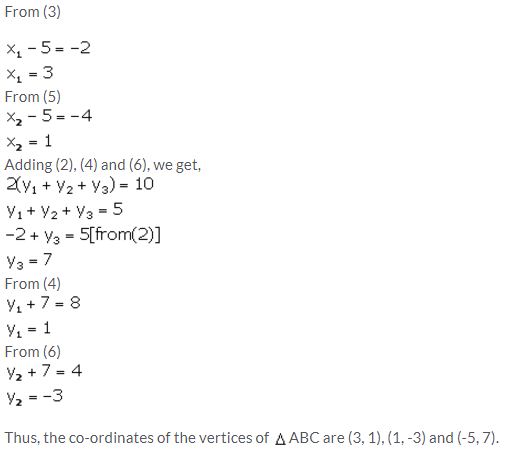

The points (2, -1), (-1, 4) and (-2, 2) are mid-points of the sides of a triangle. Find its vertices.

**Solution:**

**Question 14.**

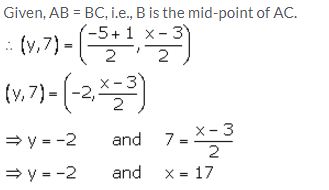

Points A (-5, x), B (y, 7) and C (1, -3) are collinear (i.e., lie on the same straight line) such that AB = BC. Calculates the values of x and y.

**Solution:**

**Question 15.**

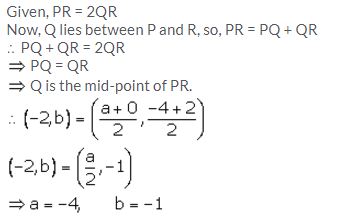

Points P (a, -4), Q (-2, b) and R (0, 2) are collinear. If Q lies between P and R, such that PR = 2QR, calculate the values of a and b.

**Solution:**

**Question 16.**

Calculate the co-ordinates of the centroid of a triangle ABC, if A = (7, -2), B = (0, 1) and C = (-1, 4).

**Solution:**

**Question 17.**

The co-ordinates of the centroid of a PQR are (2, -5). If Q = (-6, 5) and R = (11, 8); calculate the co-ordinates of vertex P.

**Solution:**

Let G be the centroid of DPQR whose coordinates are (2, -5) and let (x,y) be the coordinates of vertex P.

**Question 18.**

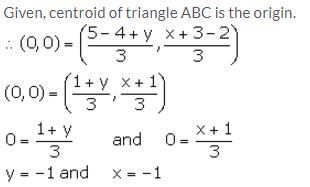

A (5, x), B (-4, 3) and C (y, -2) are the vertices of the triangle ABC whose centroid is the origin. Calculate the values of x and y.

**Solution:**

### Section and Mid-Point Formula Exercise 13C – Selina Concise Mathematics Class 10 ICSE Solutions

**Question 1.**

Given a triangle ABC in which A = (4, -4), B = (0, 5) and C = (5, 10). A point P lies on BC such that BP: PC = 3: 2. Find the length of line segment AP.

**Solution:**

**Question 2.**

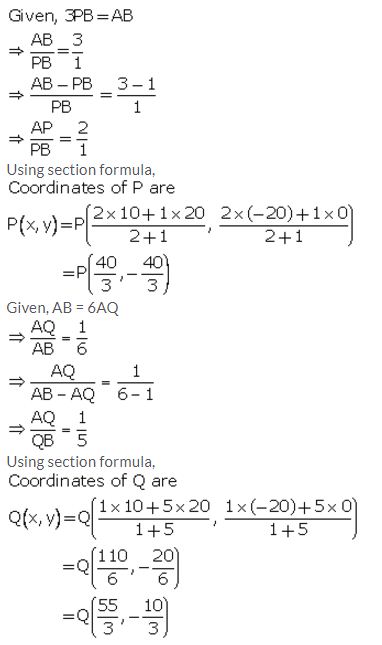

A (20, 0) and B (10, -20) are two fixed points. Find the co-ordinates of a point P in AB such that: 3PB = AB. Also, find the co-ordinates of some other point Q in AB such that AB = 6AQ.

**Solution:**

**Question 3.**

A (-8, 0), B (0, 16) and C (0, 0) are the vertices of a triangle ABC. Point P lies on AB and Q lies on AC such that AP: PB = 3: 5 and AQ: QC = 3: 5. Show that: PQ = 3/8 BC.

**Solution:**

**Question 4.**

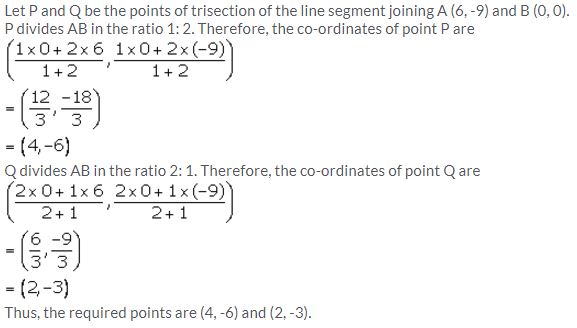

Find the co-ordinates of points of trisection of the line segment joining the point (6, -9) and the origin.

**Solution:**

**Question 5.**

A line segment joining A(-1, 5/3) and B (a, 5) is divided in the ratio 1: 3 at P, point where the line segment AB intersects the y-axis.

(i) Calculate the value of ‘a’.

(ii) Calculate the co-ordinates of ‘P’.

**Solution:**

Since, the line segment AB intersects the y-axis at point P, let the co-ordinates of point P be (0, y).

P divides AB in the ratio 1: 3.

**Question 6.**

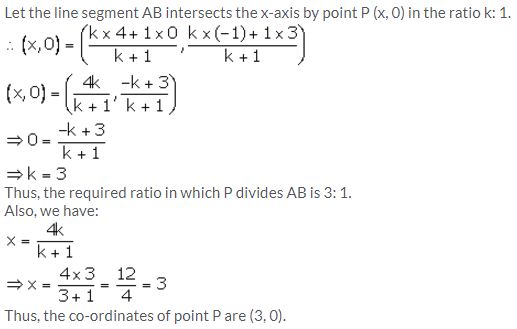

In what ratio is the line joining A (0, 3) and B (4, -1) divided by the x-axis? Write the co-ordinates of the point where AB intersects the x-axis.

**Solution:**

**Question 7.**

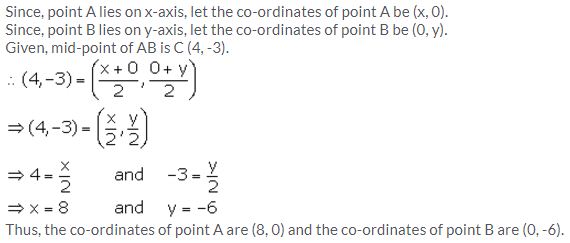

The mid-point of the segment AB, as shown in diagram, is C (4, -3). Write down the co-ordinates of A and B.

**Solution:**

**Question 8.**

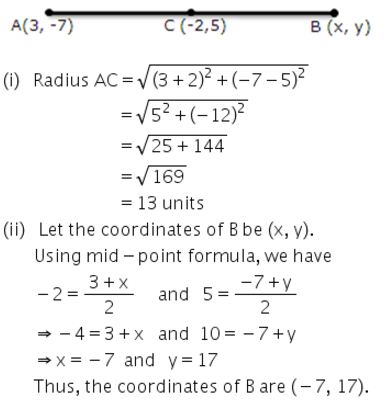

AB is a diameter of a circle with centre C = (-2, 5). If A = (3, -7), find

(i) the length of radius AC

(ii) the coordinates of B.

**Solution:**

**Question 9.**

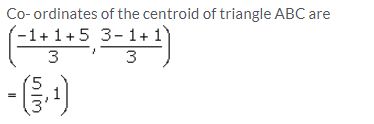

Find the co-ordinates of the centroid of a triangle ABC whose vertices are:

A (-1, 3), B (1, -1) and C (5, 1)

**Solution:**

**Question 10.**

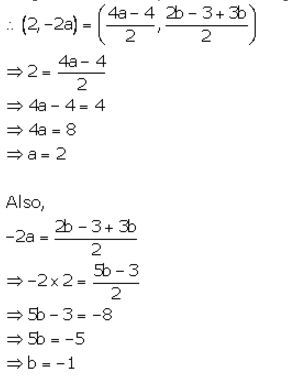

The mid-point of the line-segment joining (4a, 2b – 3) and (-4, 3b) is (2, -2a). Find the values of a and b.

**Solution:**

It is given that the mid-point of the line-segment joining (4a, 2b – 3) and (-4, 3b) is (2, -2a).

**Question 11.**

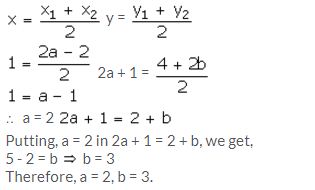

The mid-point of the line segment joining (2a, 4) and (-2, 2b) is (1, 2a + 1). Find the value of a and b.

**Solution:**

Mid-point of (2a, 4) and (-2, 2b) is (1, 2a + 1), therefore using mid-point formula, we have:

**Question 12.**

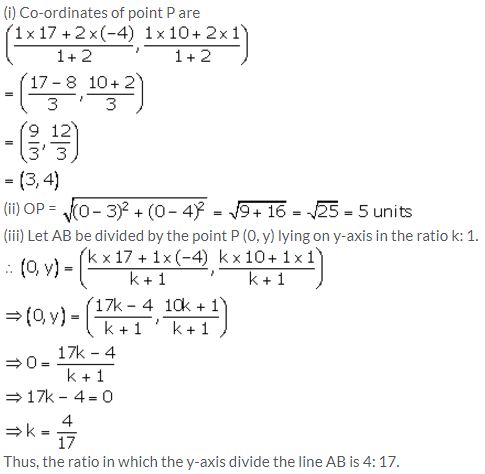

(i) Write down the co-ordinates of the point P that divides the line joining A (-4, 1) and B (17, 10) in the ratio 1: 2.

(ii) Calculate the distance OP, where O is the origin.

(iii) In what ratio does the y-axis divide the line AB?

**Solution:**

**Question 13.**

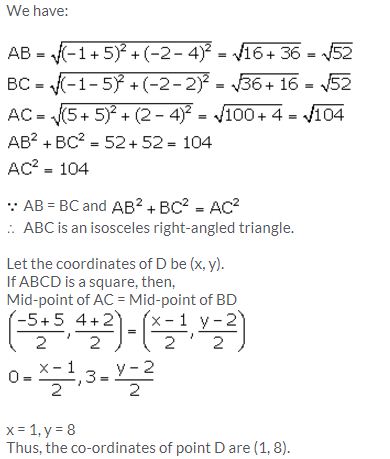

Prove that the points A (-5, 4), B (-1, -2) and C (5, 2) are the vertices of an isosceles right-angled triangle. Find the co-ordinates of D so that ABCD is a square.

**Solution:**

**Question 14.**

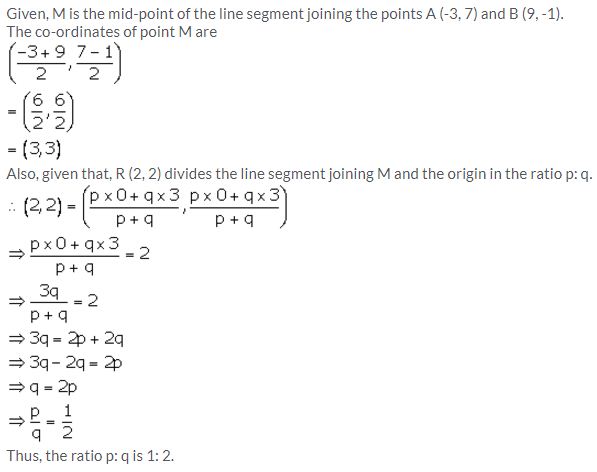

M is the mid-point of the line segment joining the points A (-3, 7) and B (9, -1). Find the co-ordinates of point M. Further, if R (2, 2) divides the line segment joining M and the origin in the ratio p: q, find the ratio p: q.

**Solution:**

**Question 15.**

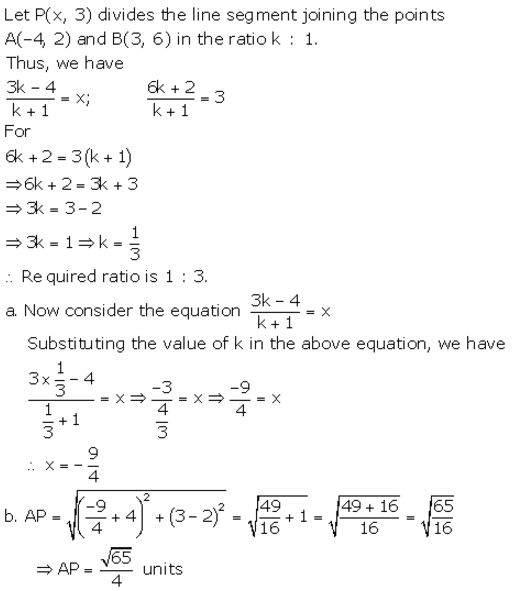

Calculate the ratio in which the line joining A(-4, 2) and B(3, 6) is divided by point P(x, 3). Also, find

(a) x

(b) length of AP.

**Solution:**

**Question 16.**

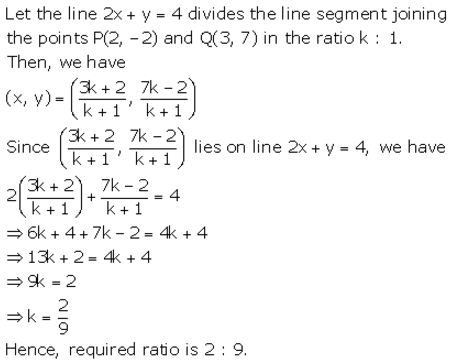

Find the ratio in which the line 2x + y = 4 divides the line segment joining the points P(2, -2) and Q(3, 7).

**Solution:**

**Question 17.**

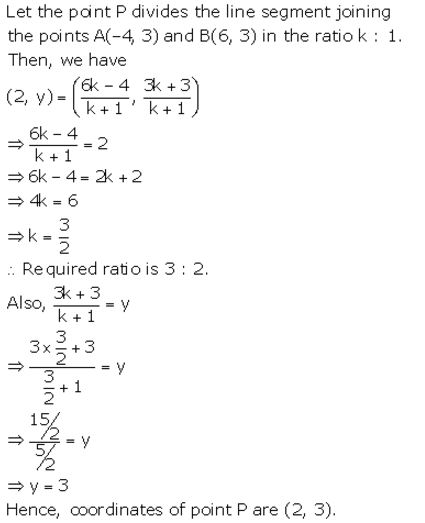

If the abscissa of a point P is 2. Find the ratio in which this point divides the line segment joining the point (-4, 3) and (6, 3). Al so, find the co-ordinates of point P.

**Solution:**

**Question 18.**

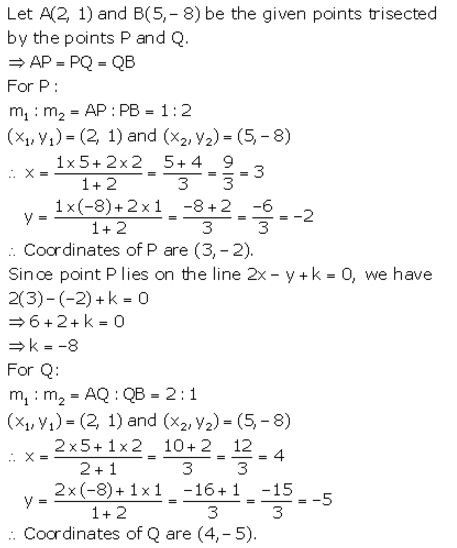

The line joining the points (2, 1) and (5, -8) is trisected at the points P and Q, point P lies on the line 2x – y + k = 0, find the value of k. Also, find the co-ordinates of point Q.

**Solution:**

**Question 19.**

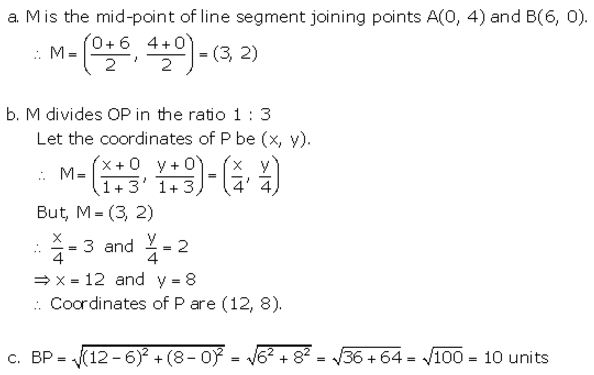

M is the mid-point of the line segment joining the points A(0, 4) and B(6, 0). M also divides the line segment OP in the ratio 1 : 3. Find :

(a) co-ordinates of M

(b) co-ordinates of P

(c) length of BP

**Solution:**

**Question 20.**

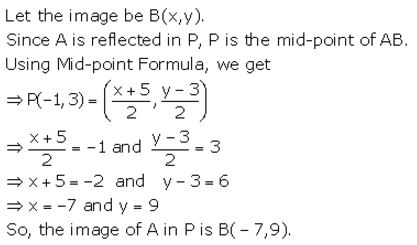

Find the image of the point A(5, -3) under reflection in the point P(-1, 3).

**Solution:**

**Question 21.**

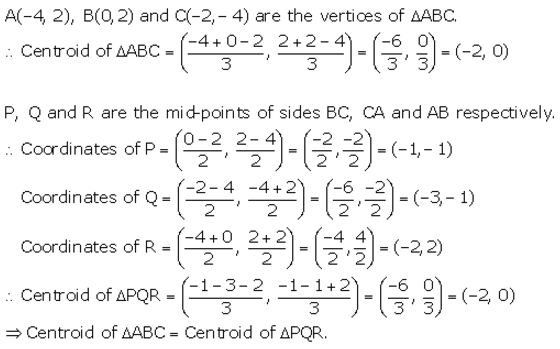

A(-4, 2), B(0, 2) and C(-2, -4) are the vertices of a triangle ABC. P, Q and R are mid-points of sides BC, CA and AB respectively. Show that the centroid of ∆ PQR is the same as the centroid of ∆ ABC.

**Solution:**

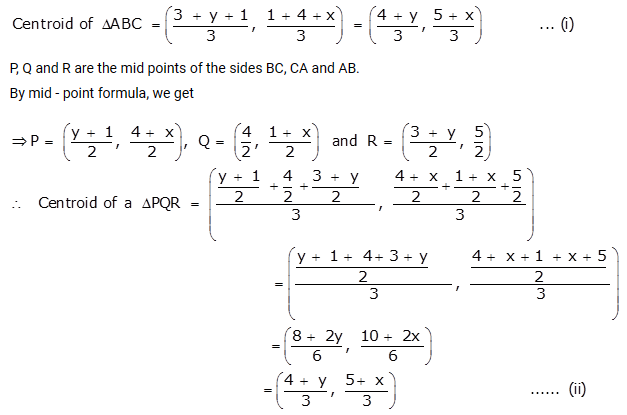

**Question 22. **From (i) and (ii), we get

Centroid of a ∆ABC = Centroid of a ∆PQR

**More Resources for Selina Concise Class 10 ICSE Solutions**

Abhijeet Jha says

section and midpoint formula class 10 icse solutions Nice atall.

Ashutosh says

Yes

Annnie says

section formula class 10 icse solutions very nice … Thank you very much for sharing valuable information with us… I mean it is really helpful in hour of need i.e. when we can’t approach teachers…

Vijay says

section and midpoint formula questions Thanks for this

I m very thankful 2 u

aditya says

Thanks concise mathematics class 10 icse solutions really helped……????????????????????

Thaufiq says

Thank you so much annaya. You presented the sum chala easily and nicely

Nel John says

Thank u appplustopper for this midpoint and section formula solutions!

Shashank Muralidhara says

Please provide the solutions for the chapterwise revision.

Rajdeep Naik says

Question

The centre of a circle is (3,4) and its radius is 13 units.find x if p(x,4x) is a point on the circumference of the circle.

NAT says

There is no solution of question 26 of the 13 (A) exercise

Mukul says

Ex -13d is not avilable
